Rowmat Structural Boards
The Rowmat Board is a dry construction material, made of specially designed extruded polystyrene, coated on both sides with a high quality cementitious coating.
The result of the above is the rigid and very hard surface, so that it can accept any tile, artificial stone, plaster or pressed cement mortar. The particularity of the Rowmat Board is that it provides convenience to the craftsman during use and application due to its very low weight. It has excellent thermal insulation properties while at the same time providing very high mechanical strength.
It is produced in a thickness of 1 to 10 cm, a length of 2.50 or 1.25 meters, while the width is fixed at 60 cm. Rowmat Board is waterproof and can be widely used in the construction sector for a huge range of applications, such as wall, floor and ceiling cladding, in bathrooms, spas, hammams, showers.
Also, Rowmat's structural board can be factory-scored on one side, making it the most ideal material for elaborate curved constructions. Thus, Rowmat structural boards can be in addition to flat and curved.
- 1 Cementitious coating of high specifications.
- 2 The special mesh increases the mechanical strength.
- 3 Specially designed extruded polystyrene.
- 4 It has excellent thermal insulation properties.
- 5 Cementitious coating of high specifications.
- 6 The special mesh increases the mechanical strength.
Properties
EXTREMELY DURABLE
Tested under compression, bending and tensile conditions. It can be used as a substrate for leveling an uneven floor or for the construction of raised partitions.
WIDE FIELD OF APPLICATIONS
Unlimited construction possibilities in minimal time. From the simplest constructions to the most elaborate projects.
LIGHT
The Rowmat structural board is made of specially designed extruded polystyrene, which makes the boards quite light, with their weight starting at just 5kg per m2.
WATERPROOF
Extremely durable under high humidity conditions. The most suitable material for the construction of bathroom, hammam and swimming pool furniture.
THERMAL INSULATION
Its properties are not affected by the humidity of the environment. Suitable for external thermal insulation of buildings.
ENVIRONMENTALLY FRIENDLY
It drastically simplifies the manufacturing process. Significant savings in energy and building materials.
RESISTANT TO WEATHER CONDITIONS
Resistant to the most extreme weather conditions without any deterioration.
DO IT YOURSELF!
No special construction knowledge is required. With basic tools and a lot of imagination you can build the most impressive constructions yourself.
Flat Structural Board
The innovative Rowmat board closes the gap between idea and implementation. Minimizes cost, implementation time and construction material consumption. It is suitable for any construction without limiting the engineer / designer or burdening the craftsman, while it is particularly environmentally friendly.
Rowmat structural boards offer very high mechanical strength and excellent thermal insulation and waterproof properties. It breaks down the boundaries in the construction sector as it can be used in any kind of simple or complex construction.
It is the most suitable material for wall, floor and ceiling coverings, thermal facades, bathroom and kitchen constructions (sinks, counters), hammams, spas and swimming pools up to tables, desks, benches, armchairs and bars.
Specifications
| Extruded polystyrene | Measurement unit | RM Board | Role model |
|---|---|---|---|
| Vertical tensile strength of the faces | Kpa | >400 | EN 1607 |
| Class of non-flammability | Class | E | EN 13501-1 |
| Thermal conductivity (declared value after 25 years) | W/ (mK) | 0,033 | EN 12667 |
| Thickness tolerances | - | T3 | EN 823 |
| Temperature of use | - | From -50oC TO +75oC | |
Dimensions
It is produced in thicknesses from 1 to 10 cm, length 2.50 or 1.25 meters, while the width is consistently 60 cm.
| Code | Thickness | Dimension | wEIGHT (kg/m 2) | PCS/pallet | m 2/pallet |
|---|---|---|---|---|---|
| RM 12 | 12 mm | 2000 X 600 mm | 6,0 | 30 | 36/m 2 |
| RMS 22 | 22 mm | 1250 X 600 mm | 6,5 | 90 | 67,5/m 2 |
| RM 22 | 22 mm | 2500 X 600 mm | 6,6 | 90 | 135/m 2 |
| RMS 32 | 32 mm | 1250 X 600 mm | 7,0 | 80 | 60/m 2 |
| RM 32 | 32 mm | 2500 X 600 mm | 7,0 | 80 | 120/m 2 |
| RMS 42 | 42 mm | 1250 X 600 mm | 7,2 | 68 | 51/m 2 |
| RM 42 | 42 mm | 2500 X 600 mm | 7,2 | 68 | 102/m 2 |
| RMS 52 | 52 mm | 1250 X 600 mm | 7,6 | 56 | 42/m 2 |
| RM 52 | 52 mm | 2500 X 600 mm | 7,6 | 56 | 84/m 2 |
| RMS 82 | 82 mm | 1250 X 600 mm | 8,6 | 36 | 27/m 2 |
| RM 82 | 82 mm | 2500 X 600 mm | 8,6 | 36 | 54/m 2 |
| RMS 102 | 102 mm | 1250 X 600 mm | 9,4 | 28 | 21/m 2 |
| RM 102 | 102 mm | 2500 X 600 mm | 9,4 | 28 | 42/m 2 |
Curved Structural Board
The Rowmat Curved Construction Board opens up a new range of possibilities and provides the ability to quickly and easily create curved constructions such as bars, desks, bathtub overlays, seats and anything else architecturally required, it is the perfect background for any overlay.
Specifications
| Extruded polystyrene | Measurement unit | RM BOARD | Role model |
|---|---|---|---|
| Vertical tensile strength of the faces | Kpa | >400 | ΕΝ 1607 |
| Class of non-flammability | Class | Ε | ΕΝ 13501-1 |
| Thermal conductivity (declared value after 25 years) | W/ (mK) | 0,033 | ΕΝ 12667 |
| Thickness tolerances | Τ3 | ΕΝ 823 | |
| Temperature of use | From -50°C to +75°C | ||
Dimensions
| Code | Thickness | Dimension | Weight (kg/m 2) | pcs/pallet | m 2/pallet |
|---|---|---|---|---|---|
| ORBS 22 | 22 mm | 1250 X 600 mm | 6,6 | 114 | 85,5/m 2 |
| ORB 22 | 22 mm | 2500 X 600 mm | 6,6 | 90 | 135/m 2 |
| ORBS | 32 mm | 1250 X 600 mm | 7,0 | 80 | 60/m 2 |
| ORB 32 | 32 mm | 2500 X 600 mm | 7,0 | 80 | 120/m 2 |

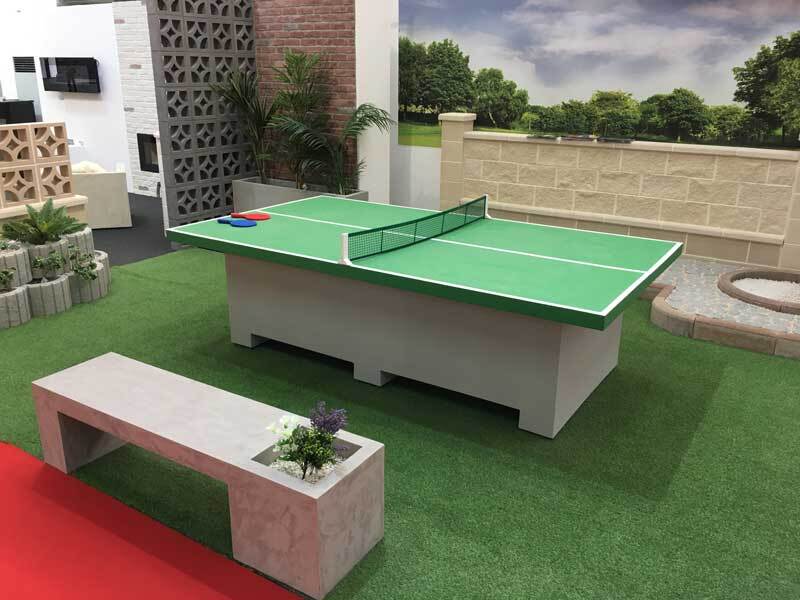

Rowmat Projects
