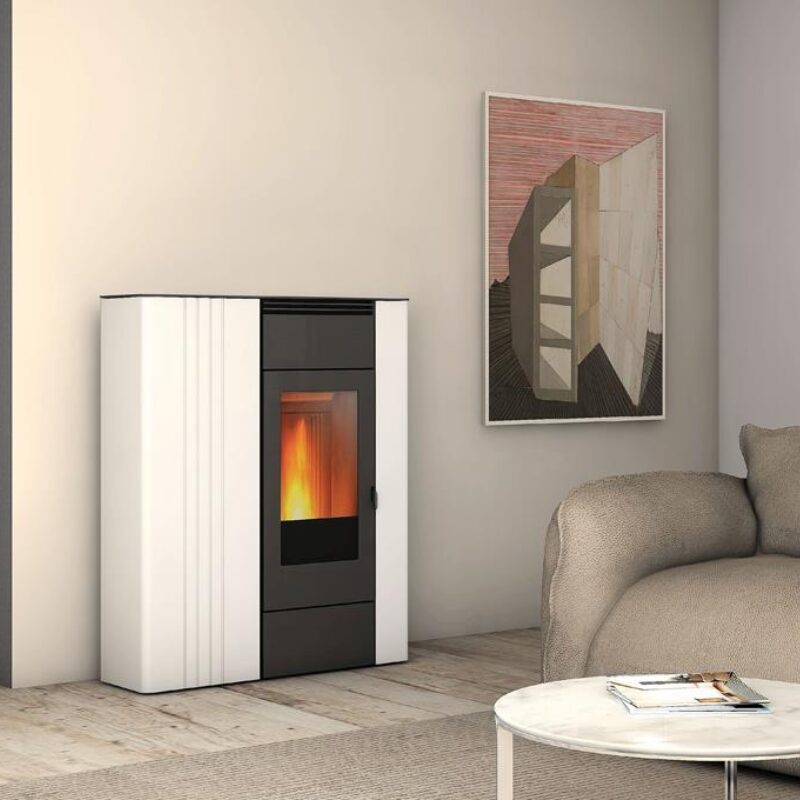

Terry

  • Thermo Forced ventilation pellet stove
  • Cladding enamelled steel
  • Top steel

⁠⁠⁠⁠⁠⁠⁠Specifications:

  • Dimensions WxDxH cm: 102 x 32 x 131
  • Stove interior: steel
  • Baffle plate/Firebox and Brazier: steel/steel-Aluker/steel
  • Flue size ø cm: 8
  • Standard flue: rear dx/side dx/up dx
  • Exhaust fumes with optional kit:
  • Boiler: acciaio
  • Circolation pump and safety devices: standard
  • Expansion tank: standard
  • Ash drawer: no
  • Door: cast iron
  • Ceramic glass: resistant up to 750°C
  • Door handle: enamelled steel, opening with cold handle
  • Hopper capacity Kg: 18
  • Stove control unit: yes
  • Timer-thermostat with programming: 6 daily time bands
  • Thermal output to the water (min-max) kW: 4,0-10,4
  • Domestic hot water flow rate with ΔT 30°C l/min:
  • Nominal thermal output (min-max) kW: 5,6-13,2
  • Output control (positions): automatic 16 levels based on the set temperature
  • Efficiency (max) %: 91,5
  • Consumption at rated heat output (min-max) Kg/h: 1,2-2,9
  • Maximum electric power (on ignition) Watt: 230
  • Electric power in operation Watt: 50
  • Total weight Kg: 200

Documents:

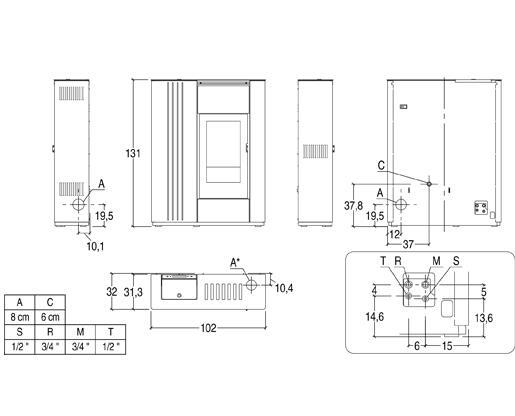

Blueprints:

Terry blue
