SCP9
SCP9 specimage

SCP9

⁠⁠⁠⁠⁠⁠⁠General technical characteristics

  • Structure: steel firebox, extractable with sliding tracks, firebox in cast iron, steel grate
  • Door: cast iron, gasket with metal sheath resistant to high temperature, ceramic glass resistant up to 750°C
  • Flue outlet Ø cm: 8
  • Function control: external wall-mounted display with new graphic interface
  • Programming: six time slots
  • Energy Saving: automatic ignition and based on set ambient temperature
  • Eco Function: automatic control of the fire

Optional

  • Front pellet loading tray kit
  • Front pellet loading kit, side and additional tank
  • Adjustable legs kit

Technical specifications

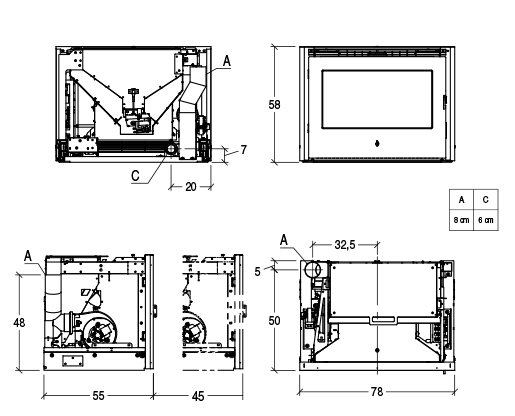

Dimensions WxDxH cm: 78x55x58
Room heating capacity (min-max) m3: 150-260
Efficiency (max) %: 87,3
Nominal thermal output (min-max) kW: 4,5-9,0
Consumption at rated heat output (min-max) Kg/h: 1,0-2,1
Power settings: 5
Hopper capacity Kg: 13
