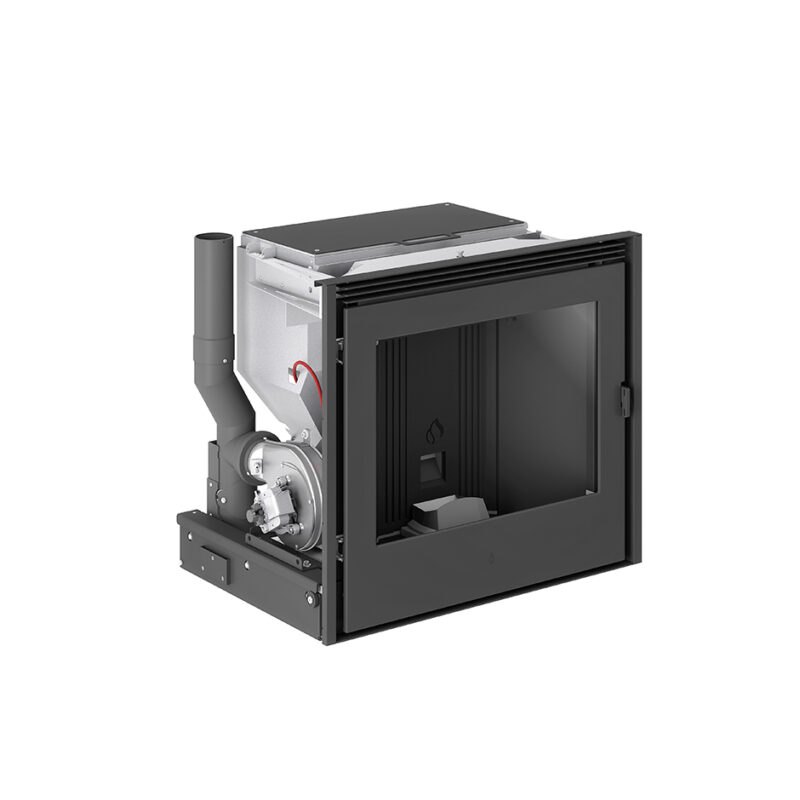

SCP7

SCP7

General technical characteristics:

  • Structure: steel firebox, extractable with sliding
    tracks, firebox in cast iron, steel grate
  • Door: cast iron, gasket with metal sheath resistant to high temperature, ceramic glass resistant up to 750°C
  • Flue outlet Ø cm: 8

  • Function control: external wall-mounted display with new graphic interface

  • Programming: six time slots

  • Energy Saving: automatic ignition and based on set
    ambient temperature

  • Eco Function: automatic control of the fire.

Optional:

  • Front pellet loading tray kit
  • Front pellet loading kit, side and additional tank
  • Adjustable legs kit

Technical specifications

Dimensions WxDxH cm: 68x49x49
Room heating capacity (min-max) m3: 120-200
Efficiency (max) %: 87,4
Nominal thermal output (min-max) kW: 3,5-7,0
Consumption at rated heat output (min-max) Kg/h: 0,8-1,6
Power settings: 4
Hopper capacity Kg: 8
Flue outlet Ø cm: 8
Electric power consumption W: 40
Max. rated inputW: 320
Fresh air intake (recomm. min sect.) Ø cm2: 100
Weight Kg: 100
