SCP 14 TH
SCP14 THBLUE

SCP 14 TH

General technical characteristics

  • Structure: monobloc steel, removable with guides sliding doors, steel hearth, cast iron brazier
  • Door: in cast iron with gasket on sheath metallic, high temperature resistant, ceramic glass resistant to 750 ° C
  • Steel conveyor
  • Standard expansion vessel
  • Cyclic cleaning of the brazier
  • Safety valve and relief valve as standard
  • Manual management 3-speed front ventilation and automatic start, completely excludable
  • Smoke outlet cm: Ø 10
  • Function control: external wired wall display with new graphic interface
  • Programming: with six daily time bands
  • Energy Saving: switching off and on automatic based on temperature environment set
  • Eco function: automatic power control of the flame
  • Antifreeze function
  • Probe for accumulation management
  • Probe for DHW storage management
  • Connectable to the external thermostat
  • Standard ash vacuum cleaner

Optional

  • Front pellet loading drawer kit
  • Front and side loading kit and additional pellet tank
  • Feet kit
  • Combustion air kit
  • Remote management with SMS
  • Superior App for management with WiFi

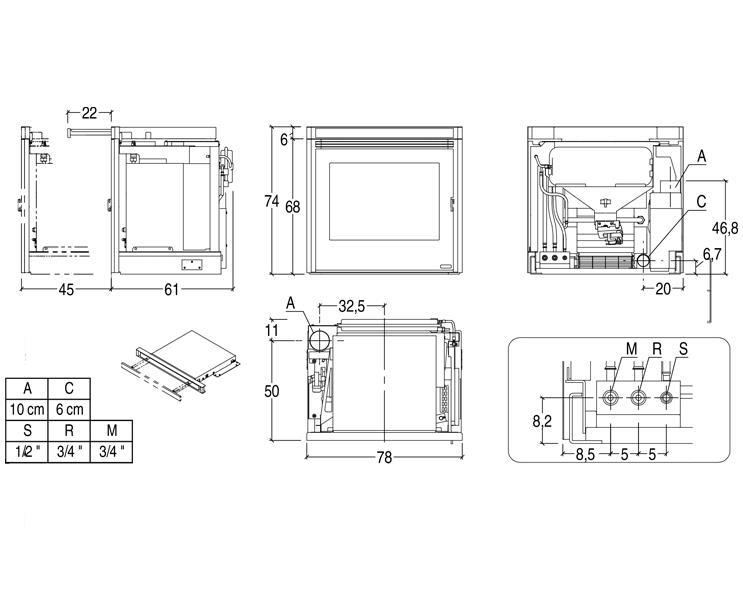

Technical specifications

Dimensions WxDxH cm: 78x61x74
Stove interior: steel
Baffle plate/Firebox and Brazier: steel/cast-iron
Flue size ø cm: 10
Standard flue: up sx
Exhaust fumes with optional kit: -
Boiler: steel
Circolation pump and safety devices: standard
Expansion tank: standard
Ash drawer: -
Door: cast-iron
Ceramic glass: resistant up 750°C
Door handle: retractable with cold hand
