Samantha

  • Forced ventilation pellet stove
  • Cladding: enamelled steel
  • Top: majolica

⁠⁠⁠⁠⁠⁠⁠Specifications:

  • Nominal heat output kW: 10,2
  • Dimensions WxDxH cm: 58 x 51 x 116
  • Stove interior: steel
  • Baffle plate/Firebox and Brazier: cast iron
  • Flue size ø cm: 8
  • Exhaust fumes series: rear
  • Exhaust fumes with optional kit: left
  • Ash drawer: removable
  • Door: cast iron opening with handle datachable
  • Ceramic glass: resistant up to 750° C
  • Door handle: enamelled steel
  • Hopper capacity Kg: 30
  • Remote control: optional
  • Humidifier: optional
  • Stove control unit: with digital controls
  • Timer-thermostat with programming: daily, weekly, weekend modes with time period settings
  • Remote Control System: optional
  • Night function:
  • Eco Function: yes
  • Energy Saving: yes
  • Room heating capacity (min-max) m3: 170 - 295
  • Nominal thermal output (min-max) kW: 4,7 - 10,2
  • Output control (positions): 5
  • Efficiency (max) %: 88,2
  • Consumption at rated heat output (min-max) Kg/h: 1,1 - 2,3
  • Maximum electric power (on ignition) Watt: 420
  • Electric power in operation Watt: 57
  • Total weight Kg: 151

Documents:

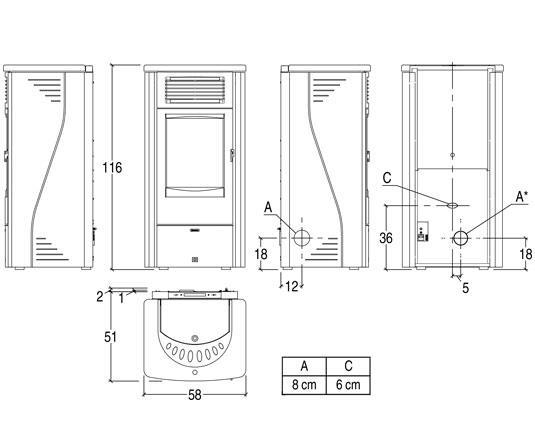

Blueprints:

Samanta blue
