Quero wall fireplace
Appreciate this design fireplace without flue !
The Xaralyn Quero is a design wall-surround, designed by Hans Daalder. The designstudio of Hans Daalder stands for designs with clear lines and understandable beauty. The Quero is a compact wall-surround, which is very suitable for smaller spaces.

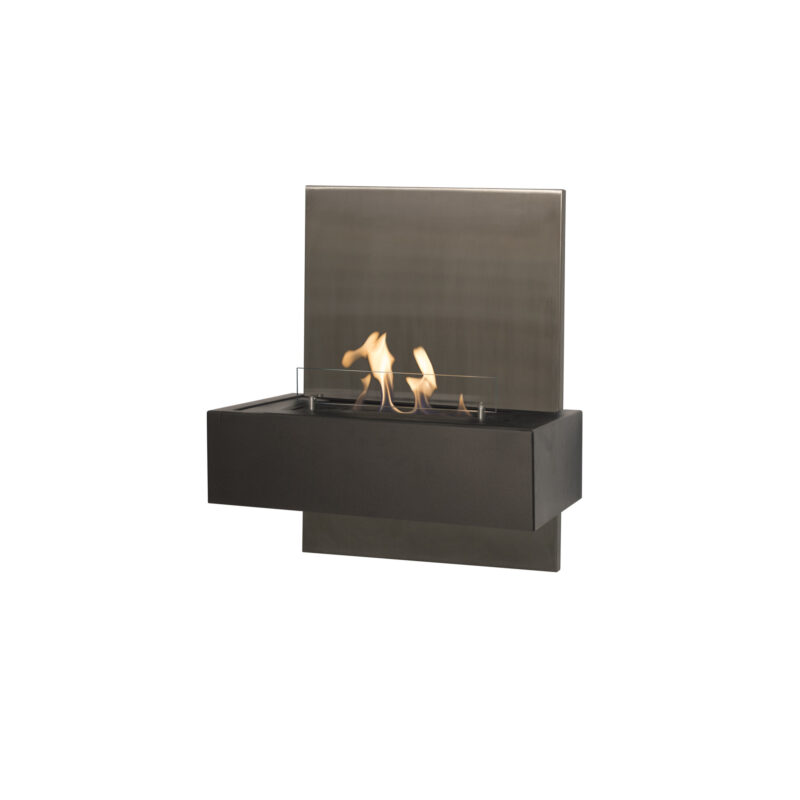

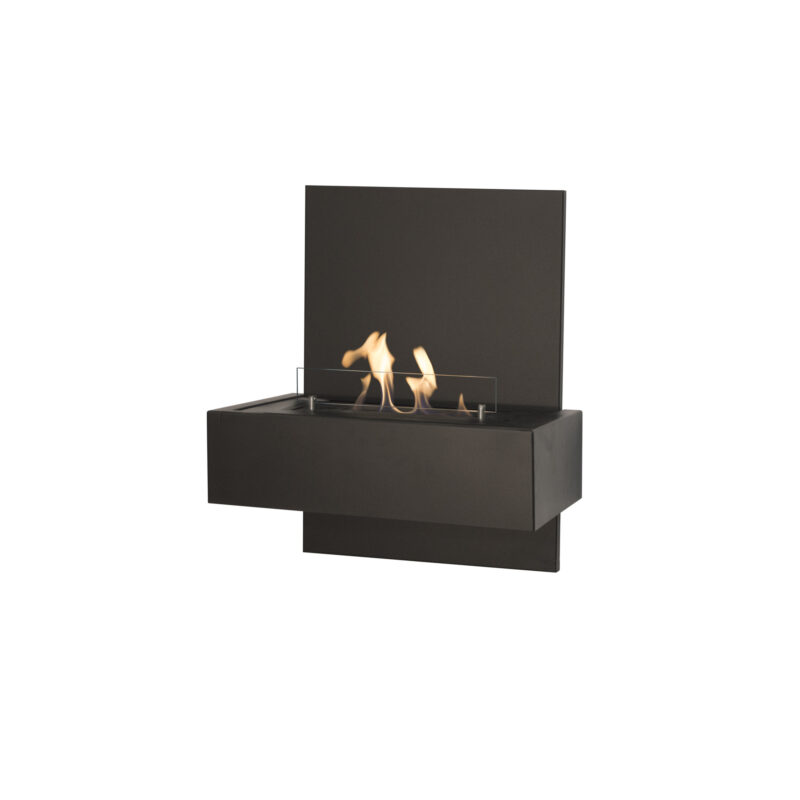

This wall-fire is made of steel with a black powder coating. The back panel is available in brushed stainless steel, corten steel, black powder coated steel, or black glass. A black steel or black glass back panel gives optically more depth to the fire, which makes it look bigger.
Corten steel is a kind of steel which gets its original rusty colour from the oxidation of some supplements like copper. This layer protects the material and can change somewhat in appearance during the first years. Each back panel from corten steel is unique.
The wall-surround Quero can be equipped with the bio ethanol burner S (4114LB) or an electric decorative fire with water vapor technique Cassette 400. See specifications for more information.
Quero wall-mounted fireplace:
- Measurements: 750 x 600 x 344 mm (HxWxD)
- Material: Metal
- Assembly time: 5-10 minutes
- Difficulty: easy
- Tools required: none
- Packaging 1: 615 x 361 x 194 mm
- Packaging 2: 77,5 x 55 x 50 mm
- Weight 1: 9,6 kg
- Weight 2: 3,9-5,4 kg
- Warranty: 2 Years
Opti-Myst Cassette 400 electric fireplace insert:
- Consumption 200 Watt
- Adjustable flame image
- Remote control
- Plug: EU grounded (supplied with UK adaptor for all deliveries to UK or Ireland)
- Packaging: 520 x 330 x 590 mm
- Weight: 9 kg
- EAN: 5011139211118
- Warranty: 2 Years
Bio ethanol burner S (4114LB):
- Burner contents: ± 1 liter
- Burning time: ± 3 hours
- Consumption per hour: ± 0,3 Liter
- Heat output: approx. 2KW
- According to standards DIN 4734-1 en EN 16647:2015
- Burner is delivered including all accessories such as glass plates, operating sticks, funnel and lighter.
- Packaging: 585 x 210 x 130 mm
- Weight: 7,1 kg
- EAN: 8717853920837
- Warranty: 2 Years
How do i mount this wall-mounted fireplace. Watch this video.
Maintenance:
- Clean with a damp cloth and dry with a soft cloth.
Documents:
- Instructional video: Installation Quero
- Assembly instructions: Assembly instructions Quero
- Technical blueprint
- Assembly instructions
