Technical Data
| P920 M SCARICO SUPERIORE | P920 M SCARICO POSTERIORE | |
|---|---|---|
| Energy efficiency class | A+ | A+ |
| Rated output | 3,4 - 8,5 kW | 3,3 - 8,5 kW |
| Efficiency | 89,8 - 91,3 % | 89 - 90,3 % |
| Heatable volume | 145 - 245 m³ | 145 - 245 m³ |
| Pellet consumption | 0,7 - 1,9 kg/h | 0,7 - 1,9 kg/h |
| Tank capacity | 14 kg | 18 kg |
| Ø Flue outlet | 8 cm | 8 cm |
Downloads
Product sheets
P920 M TOP (SCARICO SUPERIORE)-en.pdf
P920 M (SCARICO POSTERIORE)-en.pdf
EU Product sheet
S.P.2015_1186 P920 TOP SP400-03 8,5KW A+.pdf
S.P.1186+1185 P920 SP400-04 8,5KW A+.pdf
Technical drawings
Declaration of performance
DICH.DOP SP400-03 P920 TOP K27452020E12.pdf
DICH.DOP SP400-04 P920 K27452020E12.pdf
Energy class label
P920 M

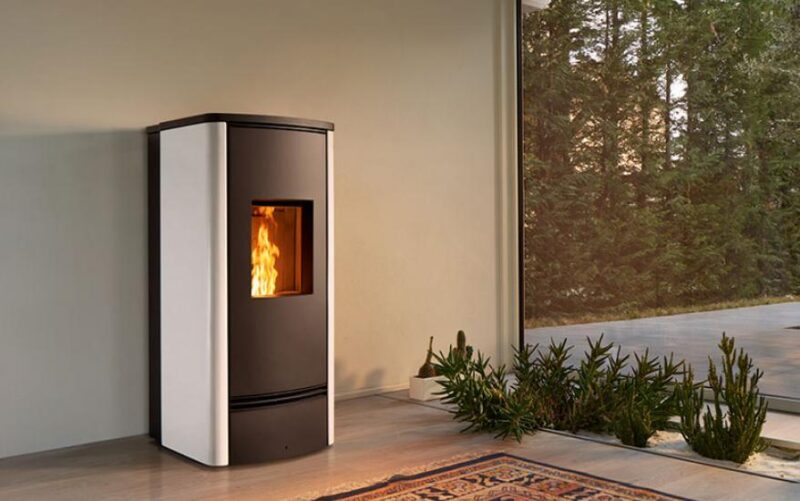

The Pellet Stove P920 M, for Flush-with-the-wall/Corner installation and cladded in Majolica, with its 8,5 KW and Energy class A+, is a refined appliance from the Premium Line by Piazzetta. Discover all the features in the Multifuoco System ducting system, the Apps, Distance Management and lots more
Main features
- Upper flue outlet
- Fuel level sensor
- Natural mode
- Pellet quality system
- Air Combustion System
- Design double door
- Majolica and steel
- Hermetic
- wall attached
- Radiant Majolica
- Automatic cleaning
- Programming
- Reburn
- Ash box
- Multifuoco System
- APP WI-FI bluetooth
- Multicomfort Plus
- Rear flue outlet
Optional
- Side ventilation
- Remote control LCD
- Upper Coaxial Flue Outlet Kit
