Details

Width of std. burner: 50 cm

Output: 7,55 kW

Technical data: PDF, PDF

Finishes

Standard burner finish

Woodchips | Vermiculite | Grey pebbles | White pebbles

Appliances with a 40 cm fireplace opening: Fitted as standard with white pebbles, or on request with grey pebbles or woodchips at no extra cost. Optionally available with Classic Style ceramic wood logs at additional cost.

Burner finish

SMOKE Style ceramic wood logs

If the optional log burner is ordered, ceramic logs will be supplied. Quantities depend on the burner measurement: if it is 50, 80 or 110 cm, 7, 10 or 14 logs are supplied.

Burner finish

CLASSIC Style ceramic wood logs


If the optional log burner is ordered, ceramic logs will be supplied. Quantities depend on the burner measurement: if it is 50, 80 or 110 cm, 13, 19 or 25 logs are supplied.

Interior finishing

Original | Design | Standard


Vertical ribbed cast iron slats (20mm)
Asymmetrical steel slats (10mm)
Flat steel plate (4 mm)

Interior finish 2021

Triangle | Round


Similar to the Original vertical cast iron ribs, the new Triangle and Round finishes ooze minimalism. However, whilst carrying on Metalfire’s love for pure and simple design, these innovative additions do add a certain dynamic to our range. The Triangle cast iron ribs offer a more angular approach to the fireplace’s interior, whereas the Round cast iron ribs - based on a design by Belgian architect Benoit Viaene - are characterized by soft curves. Common denominator: the elegant rhythm in both surfaces, which creates an interesting dialogue with the warm light of the fire. Irrefutably, both Triangle and Round are sleek and finely crafted finishes that will blend in seamlessly while simultaneously standing out in any (fireplace) interior.

Customizations


MADE-TO-MEASURE


Alongside its fireplace collection, Metalfire also specialises in additional MADE-TO-MEASURE solutions, finishing frames, concepts, floor plates, wood storage, etc. These items are manufactured to the design of the customer/architect/interior designer.

The technical department will submit the production plan to the customer for approval, and will then create these unique pieces through the skilled hands of the craftsmen in our workshop. This gives the products a unique appeal which simply can’t be achieved by automated production processes.

Finishing frames (90 x 10 mm) and concepts available in all standard versions and to measure.
Prices can be requested through our resellers.

MF 800-75 G 2S L/R

Urban

These gas-fired open fireplaces combine a minimalist design with intelligent protection. They couple sleek interior parts and pure lines, without a visible frame. They can also be fully made to measure. For houses built according to the latest building regulations, additional one-way flue gas protection, flue gas fan and electrically operated sealable valves make this combination perfectly possible and safe.

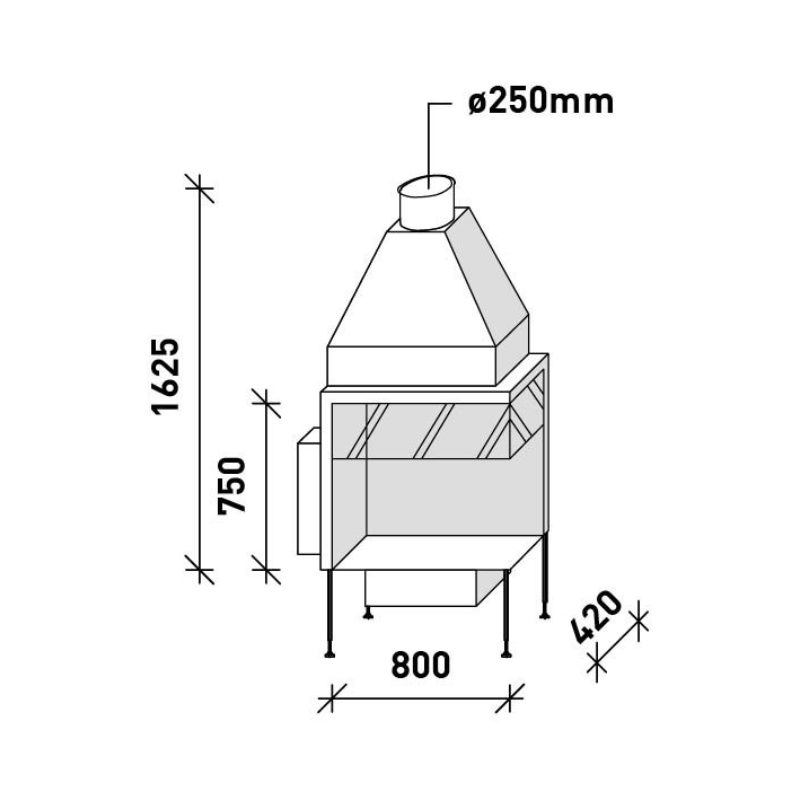

⁠⁠⁠⁠⁠⁠⁠Specifications

Supplies

  1. fresh air supply
  2. supply of ambient air/convection air
  3. primary air supply/combustion air
  4. flue gas discharge
  5. emission of heated convection air/recovered heat

Characteristics

  • A. combustion chamber with STANDARD finish (flat steel plate); ORIGINAL and DESIGN finishes are also available
  • B. bottom plate in 10 mm flat steel
  • C. manually operated handle for closing the flue gas valve and ventilation valves
  • D. burner with protected pilot flame set and oxy-pilot
  • E. remote control with Ecowave feature for -30% lower consumption
  • F. optional convection chamber for outflow of hot air
  • G. optional finishing frame in 10mm solid steel

RF remote control

The fireplace can be turned on or off using the RF remote control.

The RF remote control makes it possible to set the flame height and temperature manually, or to use a self programmable timer. It is also possible to activate the Ecowave feature. The remote control must be at room temperature to work properly.

Ecowave feature

Up to 40% savings on gas consumption

In ECOWAVE mode, the flame height alternates automatically between the highest and lowest settings. This creates a dynamic fire (and very realistic imitation of a wood fire in combination with the ceramic logs) and delivers a 40%saving in gas consumption compared with use of the highest setting. Dynamic, aesthetic and and economical all at once!

Fuel

Natural gas

Ecolabel G20, all models are available for use with natural gas.

Propane

Ecolabel G30, all models are available for bottled gas/gas in tanks, butane/propane mixes, etc.

It is of the utmost importance to have the gas fireplace connection fitted only by a recognised installer in accordance with national and/or local regulations.
