ME 90
Technical data
ME 90
Energy efficiency class A+
Rated output 14,0 kW
Efficiency 86,0 %
Heatable volume 235 - 400 m³
Wood consumption 4,0 kg/h
Ø Flue outlet 25 cm

Product weight: Vedi la scheda del prodotto

Product measures (LxPxH): 107 x 67 x 174

Downloads

ME 90

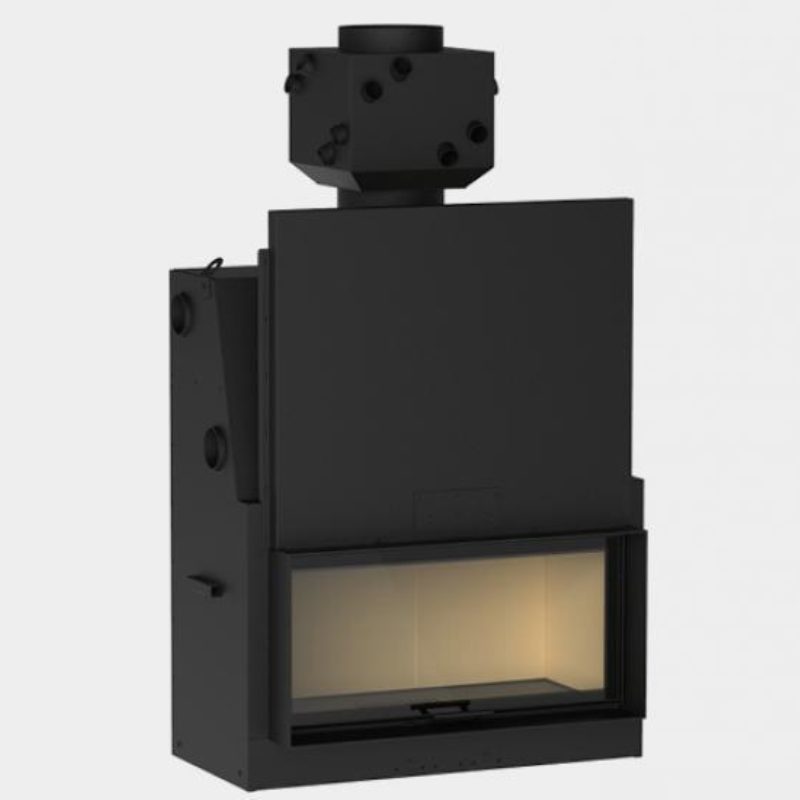

Wood-burning firebox with a rise and a fall door, an all Aluker fire chamber, high efficiency. A lowered and compact heat exchanger.

Piazzetta's ME 90 is a wood-burning fireboxes with an innovative and calibrated rise and fall door. Available in natural convection or with the forced air, single or dual fan Multifuoco System or Multifuoco System Plus.

⁠⁠⁠⁠⁠⁠⁠The pleasure of wood

Tradition and innovation to enjoy classic wood fire.

Draw combustion air from the outside

With an optional kit you can draw combustion air directly from the outside, so as to avoid using up oxygen from inside. This option allows you to improve the comfort inside your home, optimising combustion and reducing consumption for greater savings. An effective solution for any type of home.

High efficiency smoke exchanger

To optimize performance of the new range of MA SL PLUS fireplaces, they are equipped with an top end smoke exchanger, two tubular heat exchangers and a deflector located inside the firebox. This allows to further improve performance in terms of power and efficiency, with significant decrease in fuel consumption.

Ecodesign 2022

The objective of Ecodesign 2022 is to increase energy efficiency and reduce harmful emissions into the atmosphere. Piazzetta had already embarked on this path some time before, developing new product lines that include important innovations which comply with environmentally-friendly manufacturing requirements.

Main Features

  • Aluker
  • Steel structure
  • Rise n'fall door
  • Automatic cleaning
  • Ash box
  • Manual damper flue
  • Secondary air
  • Ceramic glass
  • Natural heating
  • Wood
  • Primary air
  • Cast iron brazer
  • External air kit
  • Top flue outlet
  • Steel door

Optional

  • Heat Exchanger
  • Multifuoco ducting
  • Levelling feet
  • Adjustable feet
  • Multifuoco Plus ducting
  • External air kit
  • Vacuum
  • Double Multifuoco Plus Ducting
