Technical data
ME 70
Energy efficiency class A+
Rated output 14,5 kW
Efficiency 88 %
Heatable volume 245 - 415 m³
Wood consumption 4,0 kg/h
Ø Flue outlet 20 cm

Product weight: 224 kg

Product measures (LxPxH): 85,3 x 65,2 x 177,3

Downloads

ME 70

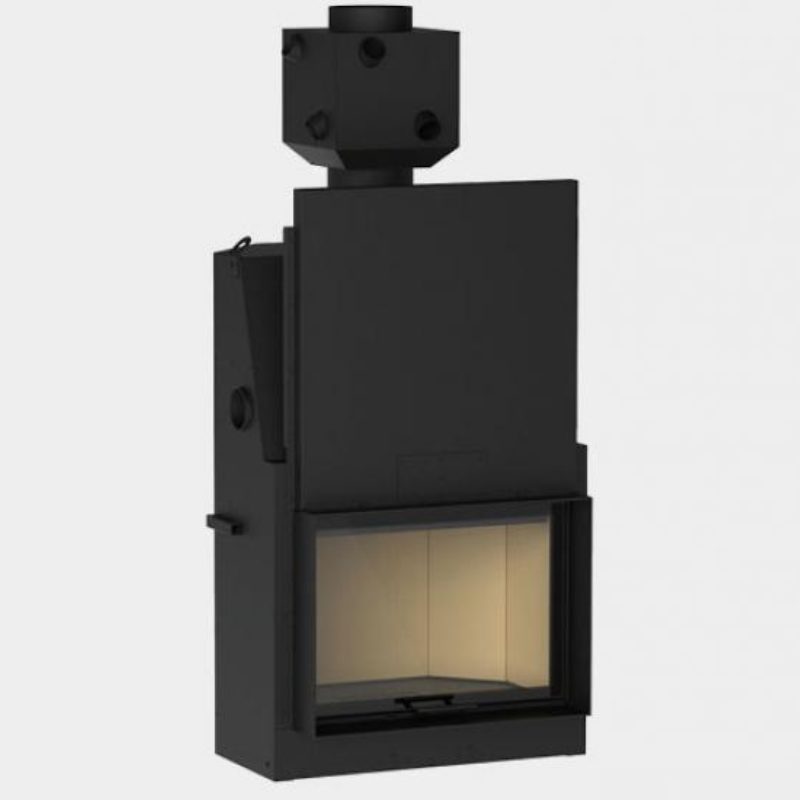

Wood-burning firebox with a rise and a fall door, an all Aluker fire chamber, high efficiency. A lowered and compact heat exchanger.

Piazzetta's ME 70 is a wood-burning fireboxes with an innovative and calibrated rise and fall door. Available in natural convection or with the forced air, single or dual fan Multifuoco System or Multifuoco System Plus.

The pleasure of wood

Tradition and innovation to enjoy classic wood fire.

Draw combustion air from the outside

With an optional kit you can draw combustion air directly from the outside, so as to avoid using up oxygen from inside. This option allows you to improve the comfort inside your home, optimising combustion and reducing consumption for greater savings. An effective solution for any type of home.

High efficiency smoke exchanger

To optimize performance of the new range of MA SL PLUS fireplaces, they are equipped with an top end smoke exchanger, two tubular heat exchangers and a deflector located inside the firebox. This allows to further improve performance in terms of power and efficiency, with significant decrease in fuel consumption.

Ecodesign 2022

The objective of Ecodesign 2022 is to increase energy efficiency and reduce harmful emissions into the atmosphere. Piazzetta had already embarked on this path some time before, developing new product lines that include important innovations which comply with environmentally-friendly manufacturing requirements.

Main Features

  • Cast iron brazer
  • Secondary air
  • Wood
  • External air kit
  • Top flue outlet
  • Natural heating
  • Manual damper flue
  • Ceramic glass
  • Steel door
  • Primary air
  • Aluker
  • Ash box
  • Rise n'fall door
  • Steel structure

Optional

  • Multifuoco Plus ducting
  • Vacuum
  • Levelling feet
  • Multifuoco ducting
  • Adjustable feet
  • Double Multifuoco Plus Ducting
  • Heat Exchanger
  • External air kit
