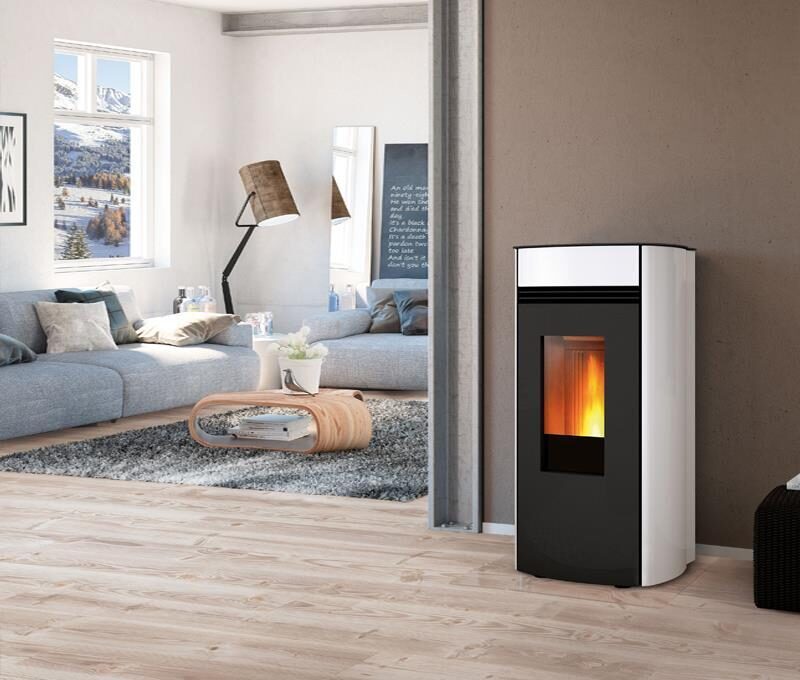

Maya

  • Forced ventilation pellet stove
  • Cladding: enamelled steel
  • Top: steel

⁠⁠⁠⁠⁠⁠⁠Specifications:

  • Nominal heat output kW: 8,0
  • Dimensions WxDxH cm: 51x50x100
  • Stove interior: steel
  • Baffle plate/Firebox and Brazier: cast iron
  • Flue size ø cm: 8
  • Exhaust fumes series: rear
  • Exhaust fumes with optional kit: side - left/ right
  • Ash drawer: removable
  • Door: cast iron, with estetic door in steel
  • Ceramic glass: resitant up to 750°C
  • Door handle: painted steel
  • Hopper capacity Kg: 16
  • Remote control: optional
  • Humidifier: optional
  • Stove control unit: yes
  • Timer-thermostat with programming: 6 daily time bands
  • Remote Control System: optional
  • Night function: yes
  • Eco Function: yes
  • Energy Saving: yes
  • Room heating capacity (min-max) m3: 135-230
  • Nominal thermal output (min-max) kW: 3,9-8,0
  • Output control (positions): 4
  • Efficiency (max) %: 87,1
  • Consumption at rated heat output (min-max) Kg/h: 09-1,9
  • Maximum electric power (on ignition) Watt: 330
  • Electric power in operation Watt: 37
  • Total weight Kg: 98

Documents:

Blueprints:

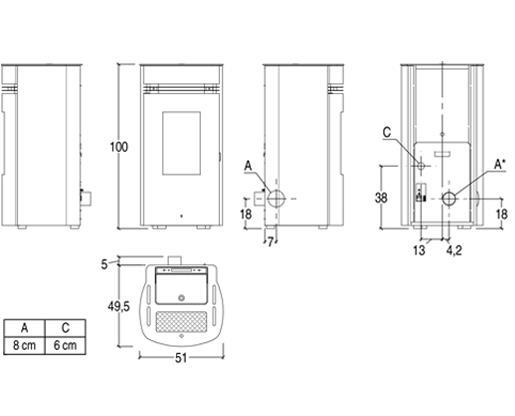

Maya blueprint
