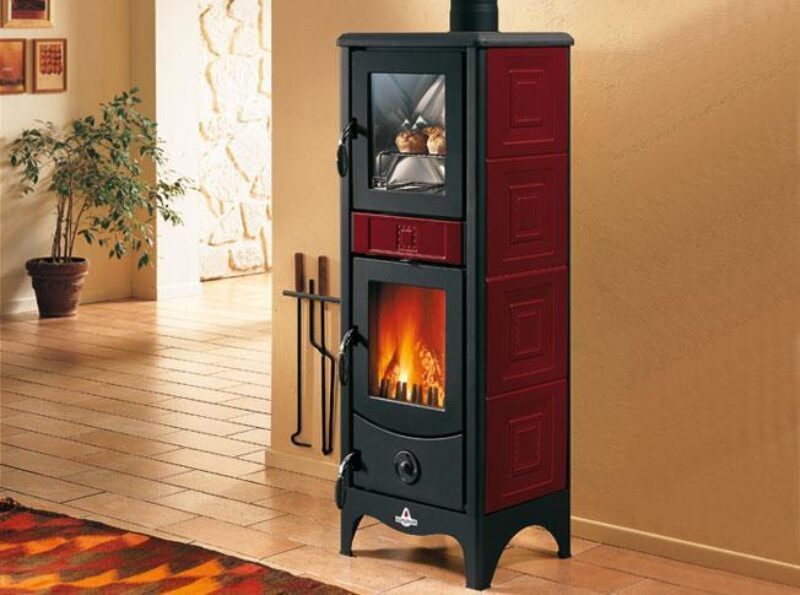

Maddalena

  • Wood-burning stove
  • Cladding: majolica
  • Top: cast iron

⁠⁠⁠⁠⁠⁠⁠Specifications:

  • Dimensions (WxDxH) cm: 47 x 41 x 132
  • Cladding: majolica
  • Top: cast iron
  • Stove interior: steel
  • Primary and secondary air: adjustable
  • Firebox and baffle plate: cast iron
  • Fire pit: cast iron
  • Heating: natural convection and radiant heat
  • Flue outlet cm ø: 12
  • Ash drawer: removable
  • Door: cast iron with automatic lock
  • Ceramic glass: resistant up to 750° C self-cleaning
  • Door handle: chrome with spring knob
  • Stainless steel oven (WxDxH) cm: 26 x 25 x 31,5
  • Room heating capacity (min-max) m3: 105 - 180
  • Fresh air intake (min useful sect.) cm2: 100
  • Efficiency %: 80,0
  • Nominal thermal output kW: 6,2
  • Consumption at rated heat output Kg/h: 1,8
  • Total weight Kg: 160

Documents:

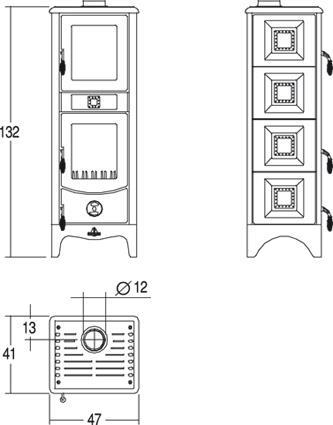

Blueprints:

Maddalena blue
