Technical data
MA 283 D SL PLUS | MA 283 S SL PLUS | |
---|---|---|
Energy efficiency class | A | A |
Rated output | 16,0 kW | 16,0 kW |
Efficiency | 80,4 % | 80,4 % |
Heatable volume | 270 - 460 m³ | 270 - 460 m³ |
Wood consumption | 4,8 kg/h | 4,8 kg/h |
Ø Flue outlet | 25 cm | 25 cm |
Product weight: 270 kg
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads
MA 283 S SL PLUS PRODUCT SHEET
MA 283 D SL PLUS PRODUCT SHEET
MA 283 D SL PLUS EU PRODUCT SHEET
MA 283 S SL PLUS EU PRODUCT SHEET
MA 283 D/S SL PLUS C. MANTELLO TECHNICAL DRAWING
MA 283 D/S SL PLUS TECHNICAL DRAWING
MA 283 S SL PLUS TECHNICAL DRAWING
MA 283 D SL PLUS DECLARATION OF PERFORMANCE
MA 283 S SL PLUS DECLARATION OF PERFORMANCE

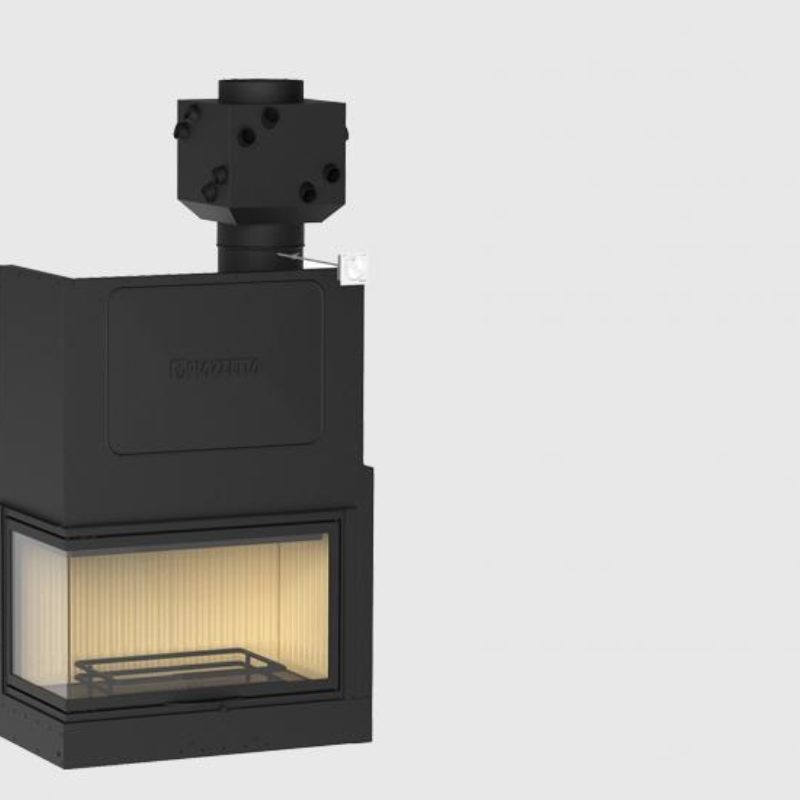

MA 283 D/S SL PLUS
One-piece Firebox, Vertically-sliding Door, MA 283 D/S SL PLUS with Natural Convection for Wood Fireboxes
The MA 283 D/S SL by Piazzetta is the One-piece Firebox with Vertically-sliding Door and Natural Convection for Wood Fireboxes that will ensure you low consumption, high efficiency and easy installation. Find out further information.
The pleasure of wood
Tradition and innovation to enjoy classic wood fire.
High efficiency smoke exchanger
To optimize performance of the new range of MA SL PLUS fireplaces, they are equipped with an top end smoke exchanger, two tubular heat exchangers and a deflector located inside the firebox. This allows to further improve performance in terms of power and efficiency, with significant decrease in fuel consumption.
Aluker®, exclusive ceramic material by Piazzetta.
Piazzetta fireboxes are made with Aluker®, the exclusive ceramic material patented by Piazzetta, which improves combustion and heat diffusion, thereby increasing the operating efficiency of the firebox. The light colour of this material remains like that over time, making the view of the fire even more pleasant and always brilliant and alive.
Ecodesign 2022
The objective of Ecodesign 2022 is to increase energy efficiency and reduce harmful emissions into the atmosphere. Piazzetta had already embarked on this path some time before, developing new product lines that include important innovations which comply with environmentally-friendly manufacturing requirements.
Main Features
- Manual damper flue
- Cast iron brazier and aluker firebox
- Ash tray
- Steel structure
- Rise n'fall door
Optional
- Vacuum
- Heat Exchanger
- Multifuoco Plus ducting
- External air kit
- Multifuoco System
- Adjustable feet
- Log retainer
- Levelling feet
- Double Multifuoco Plus Ducting
