Technical data
MA 283 S SL | MA 283 D SL | |
---|---|---|
Energy efficiency class | A | A |
Rated output | 13,5 kW | 13,5 kW |
Efficiency | 75 % | 75 % |
Heatable volume | 225 - 390 m³ | 225 - 390 m³ |
Wood consumption | 4.1 kg/h | 4.1 kg/h |
Ø Flue outlet | 25 cm | 25 cm |
Product weight: Vedi la scheda del prodotto
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads

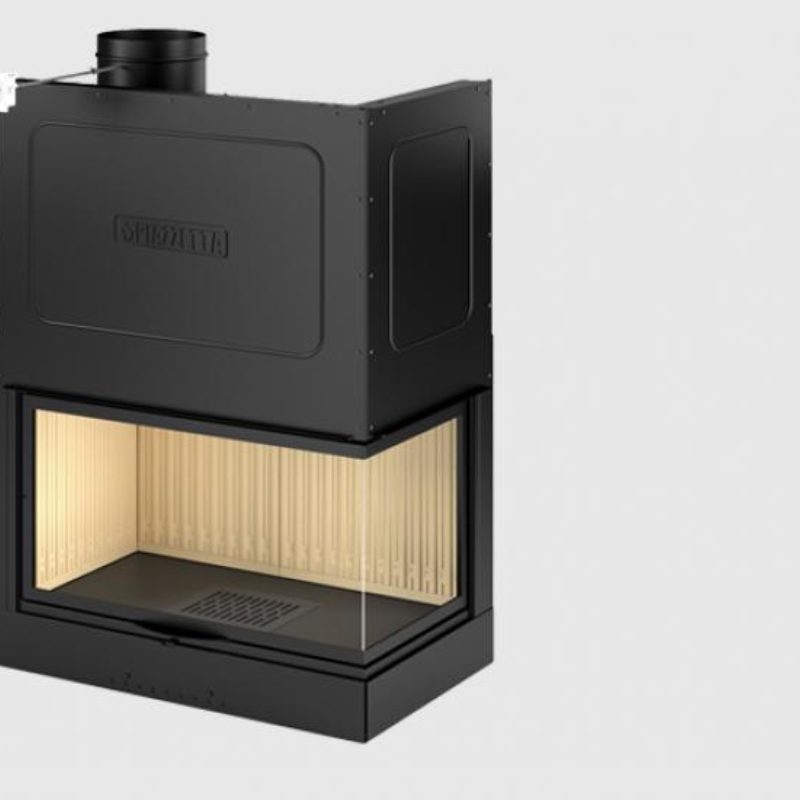

MA 283 D/S SL
One-piece Firebox, Vertically-sliding Door with Exposure to the Left, E-C A, MA 283 D/S SL with Natural Convection for Wood fireboxes
Wood firebox that blends clean design lines with ease of use. Its perfect construction linearity offers a wide variety of installation options. The screen-printed glass frames the fire and makes it the distinctive feature of the home.
The pleasure of wood
Tradition and innovation to enjoy classic wood fire.
Aluker®, exclusive ceramic material by Piazzetta.
Piazzetta fireboxes are made with Aluker®, the exclusive ceramic material patented by Piazzetta, which improves combustion and heat diffusion, thereby increasing the operating efficiency of the firebox. The light colour of this material remains like that over time, making the view of the fire even more pleasant and always brilliant and alive.

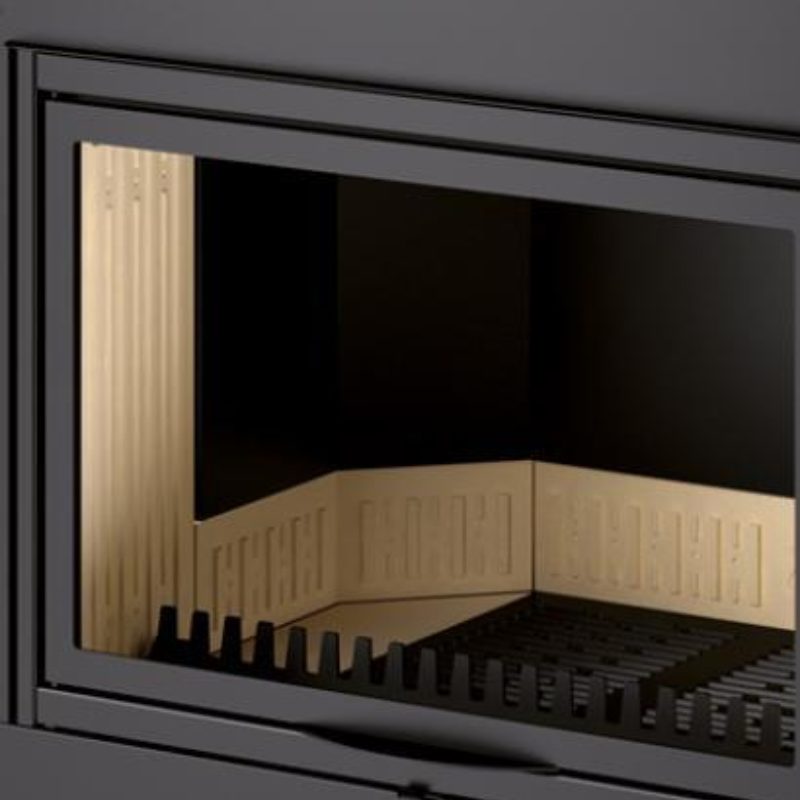

Structural sturdiness
The sturdiness of Piazzetta appliances is the result of enormous experience and ongoing research. The structural sturdiness, resulting from careful design and top quality, high-thickness steel, ensures long service life of each solution. The products are developed as well as tested in Piazzetta laboratories to check production processes and compliance with international standards.

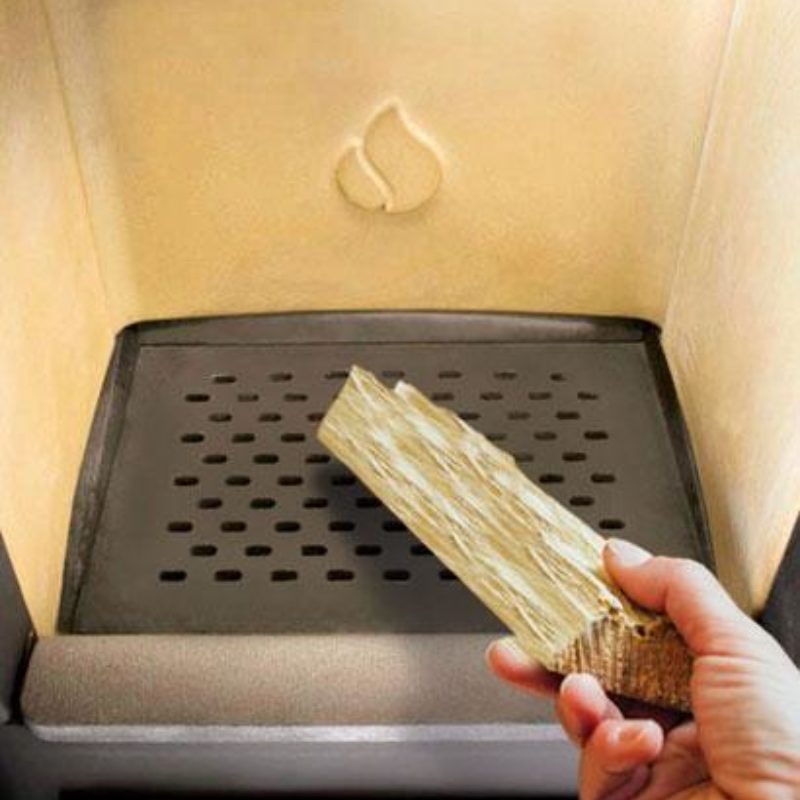

Practical brazier
Thanks to its particular development, the brazier in Piazzetta fireboxes offers an ample capacity and ease in loading wood. This means easier use, significant combustion quality and an unparalleled view of the fire. Collecting the embers is also highly practical. The ample dimensions also allows the view of the fire to be enhanced to the maximum by offering a wide
Main Features
- Steel
- Cast iron brazier and aluker firebox
- Rise n'fall door
- Ash box
- Manual damper flue
Optional
- External air kit
- Adjustable feet
- Levelling feet
- Log retainer
- Vacuum
