Technical data
MA 263 B SL | |
---|---|
Energy efficiency class | A |
Rated output | 12,5 kW |
Efficiency | 73 % |
Heatable volume | 210 - 360 m³ |
Wood consumption | 4 kg/h |
Ø Flue outlet | 20 cm |
Product weight: 190 kg
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads
MA 263 B SL

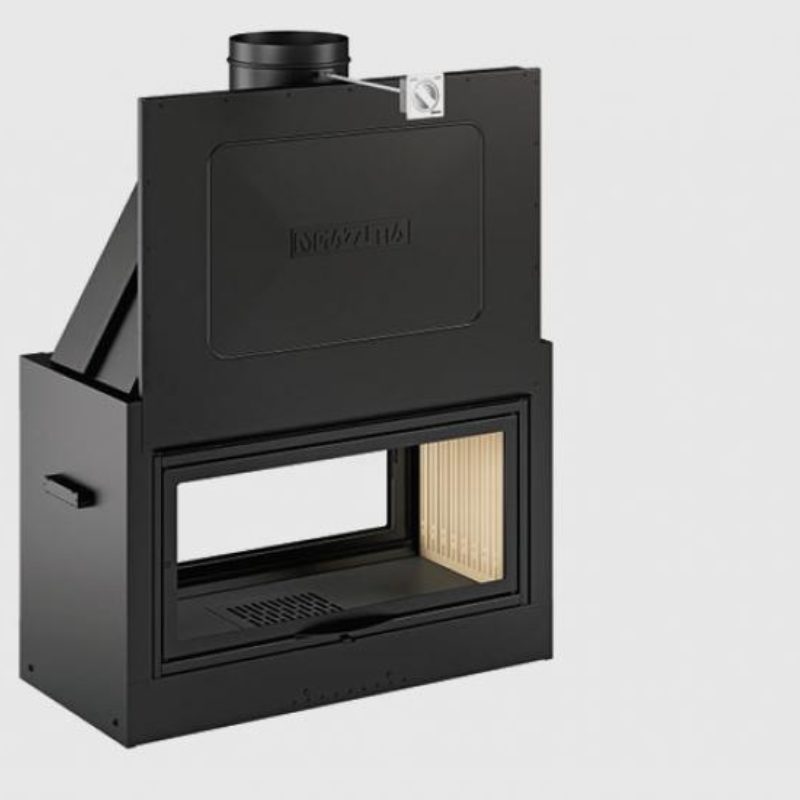

One-piece Firebox, Vertically-sliding Door, E-C A, MA 263 B SL with Natural Convection for Wood Fireboxes
Wood firebox that blends clean design lines with ease of use. Its perfect construction linearity offers a wide variety of installation options. The screen-printed glass frames the fire and makes it the distinctive feature of the home.
The pleasure of wood
Tradition and innovation to enjoy classic wood fire.
Draw combustion air from the outside
With an optional kit you can draw combustion air directly from the outside, so as to avoid using up oxygen from inside. This option allows you to improve the comfort inside your home, optimising combustion and reducing consumption for greater savings. An effective solution for any type of home.
Structural sturdiness
The sturdiness of Piazzetta appliances is the result of enormous experience and ongoing research. The structural sturdiness, resulting from careful design and top quality, high-thickness steel, ensures long service life of each solution. The products are developed as well as tested in Piazzetta laboratories to check production processes and compliance with international standards.
Aluker®, exclusive ceramic material by Piazzetta.
Piazzetta fireboxes are made with Aluker®, the exclusive ceramic material patented by Piazzetta, which improves combustion and heat diffusion, thereby increasing the operating efficiency of the firebox. The light colour of this material remains like that over time, making the view of the fire even more pleasant and always brilliant and alive.
Main Features
- Steel
- Cast iron brazier and aluker firebox
- Rise n'fall door
- Ash box
- Manual damper flue
Optional
- External air kit
- Adjustable feet
- Levelling feet
- Log retainer
- Vacuum
