Lia

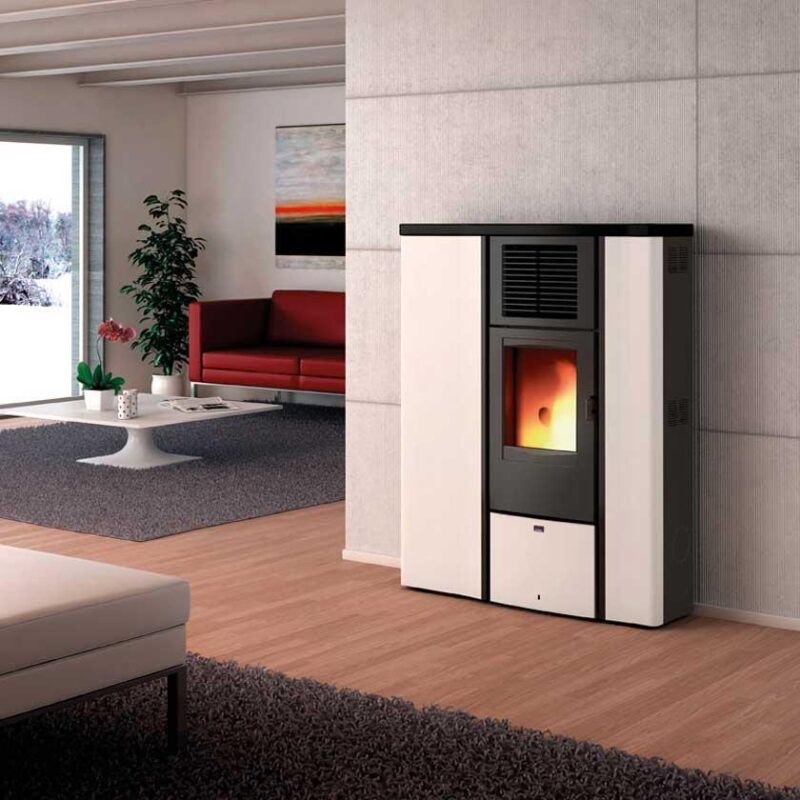

  • Forced ventilation pellet stove
  • cladding:enamelled steel
  • top: in majolica

⁠⁠⁠⁠⁠⁠⁠Specifications:

  • Nominal heat output kW: 8,5
  • Dimensions WxDxH cm: 89 x 23 x 112
  • Stove interior: steel
  • Baffle plate/Firebox and Brazier: cast iron
  • Flue size ø cm: 8
  • Exhaust fumes series: rear, side, right top
  • Exhaust fumes with optional kit: central top, side or left rear
  • Ash drawer: removable
  • Door: cast iron opening with detachable handle
  • Ceramic glass: resistantup to 750°C
  • Door handle: enamelled steel
  • Hopper capacity Kg: 17
  • Remote control: optional
  • Humidifier: optional
  • Stove control unit: with digital control
  • Timer-thermostat with programming: daily, weekly, weekend modes with time period settings
  • Remote Control System: optional
  • Night function: yes
  • Eco Function: yes
  • Energy Saving: yes
  • Room heating capacity (min-max) m3: 145 - 245
  • Nominal thermal output (min-max) kW: 2,6 - 8,5
  • Output control (positions): 4
  • Efficiency (max) %: 85,2
  • Consumption at rated heat output (min-max) Kg/h: 0,6 - 2,0
  • Maximum electric power (on ignition) Watt: 320
  • Electric power in operation Watt: 33
  • Total weight Kg: 125

Documents:

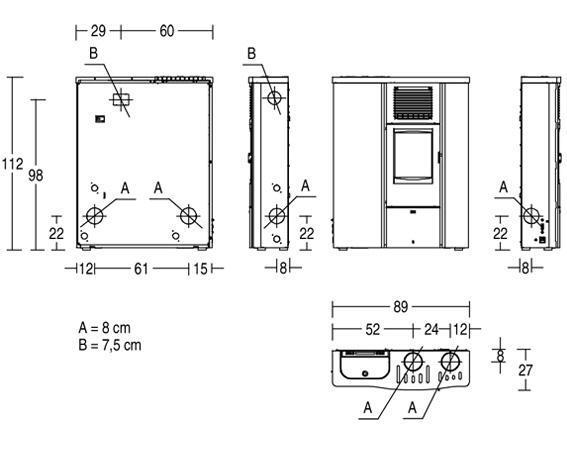

Blueprints:

Lia blue
