Technical data
| IP 7 M | |
|---|---|
| Energy efficiency class | A+ |
| Rated output | 3,5 - 7 kW |
| Efficiency | 87,4 - 88,3 % |
| Heatable volume | 120 - 200 m³ |
| Pellet consumption | 0,8 - 1,6 kg/h |
| Tank capacity | 8 kg |
| Ø Flue outlet | 8 cm |
Product weight: 115 kg
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads
IP 7 M
Pellet-burning firebox mounted on rails. Applicable for first time installations or installed into an existing structures. Remote control with LCD display and with the Multicomfort function, digital command panel.

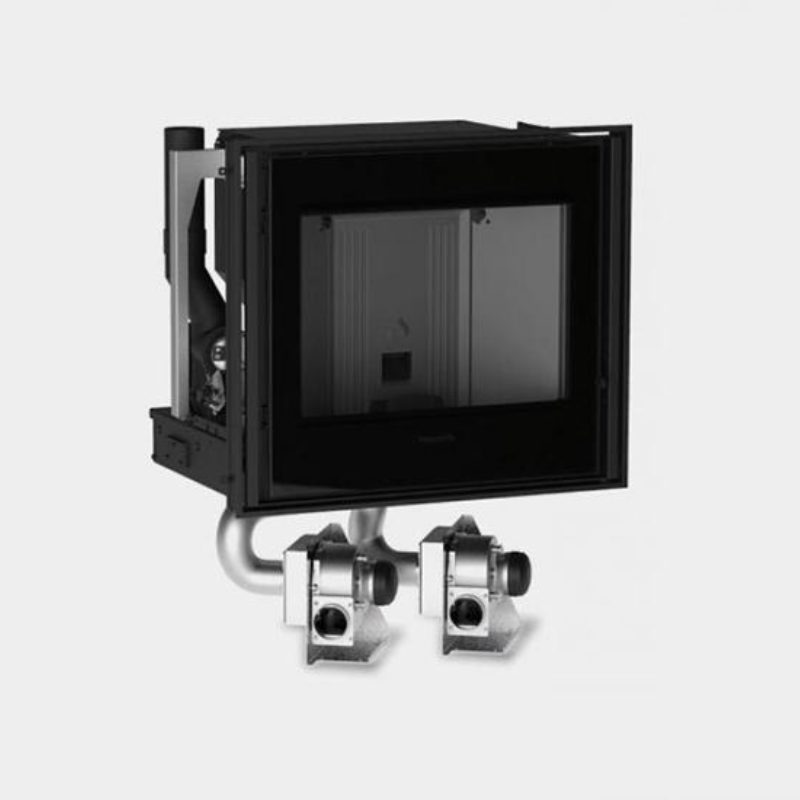

Piazzetta's IP 7 M is a pellet-burning firebox mounted on rails for an easy extractable loading system, which eliminates any necessity for add-on loading applications and internal inspections.
The efficiency of pellets
Performance and savings, the optimum solution for bringing warmth to the home.
Ducting with the Multifuoco® System
The Multifuoco System® allows you to maintain an even room temperature, thanks to natural convection currents. It avoids the layering of heat near the ceiling and ensures heat at floor level (our feet). Via a simple ducting system, consisting of small-diameter, flexible pipes, you can also heat other rooms in the house, even on different floors.
Sliding rails
Piazzetta inserts are equipped with sliding rails which make them easy to extract. They guarantee maximum ease when loading pellets into the tank and during maintenance.
High load capacity
The following elements are available for longer working autonomy: upper tray filling kit that avoids having to switch off and extract the insert, and a supplementary tank kit for extended operating autonomy.
Main features
Ceramic glass
Ash box
Remote control LCD
Vacuum
APP WI-FI bluetooth
Top flue outlet
Pellet
Programming
Multifuoco ducting
Cast iron firebox
Steel brazer
