Technical Data
| IP 14 TH VENTILATO VERSIONE CON PORTA IN GHISA E VETRO CERAMICO | IP 14 TH VENTILATO VERSIONE CON PORTA IN GHISA E VETRO CERAMICO SERIGRAFATO NERO | |
|---|---|---|
| Energy efficiency class | A+ | A+ |
| Rated output | - | - |
| Heat output to water | 3,9 - 14 kW | 3,9 - 14 kW |
| Efficiency | 90,1 - 91,1 % | 90,1 - 91,1 % |
| Pellet consumption | 1,1 - 3,9 kg/h | 1,1 - 3,9 kg/h |
| Tank capacity | 22 kg | 22 kg |
| Ø Flue outlet | 10 cm | 10 cm |
Product weight: 178 kg
Product measures (LxPxH): 78 x 61 x 74
Downloads
Product sheets
IP 14 TH CAST IRON DOOR (VERSIONE CON PORTA IN GHISA E VETRO CERAMICO)-en.pdf
IP 14 TH FRAMELESS DOOR (VERSIONE CON PORTA IN GHISA E VETRO CERAMICO SERIGRAFATO NERO)-en.pdf
EU Product sheet
S.P.1186+1185 IP 14 TH 16,9KW A+.pdf
S.P.1186+1185 IP 14 TH 16,9KW A+.pdf
Technical drawings
DisegnoTecnico-IP 14 TH CAST IRON DOOR.pdf
DisegnoTecnico-IP 14 TH CAST IRON DOOR.pdf
DisegnoTecnico-IP 14 TH CAST IRON DOOR.pdf
DisegnoTecnico-IP 14 TH FRAMELESS DOOR.pdf
DisegnoTecnico-IP 14 TH FRAMELESS DOOR.pdf
Declaration of performance
DICH.DOP YP250-01 IP 14 TH K25222018T1.pdf
DICH.DOP YP250-01 IP 14 TH K25222018T1.pdf
Energy class label

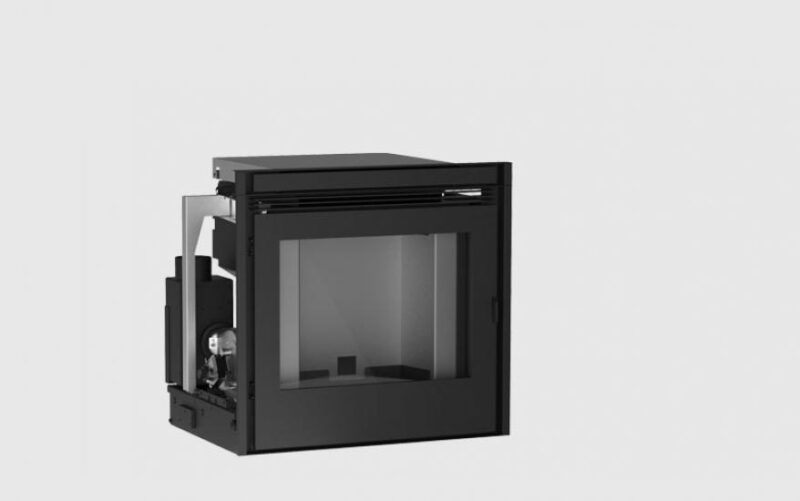

IP 14 TH
The MP pellet Thermo firebox can satisfy every need as regards delivery of hot water, ensuring perfect warmth and comfort in the home, thanks to the high heat exchange rating of the boiler.
Main features
- Anti-freeze function
- Automatic cleaning
- Thermostat
- ECO
- Ventilation kit
- Digital display
- Reburn
- Installation open tank
- Summer/Vinter function
- Steel structure
- Fuel level sensor
- ACS Domesti hot water
- Programming
- Safety valve
- Automatic water temperature
- Vacuum
- Cast iron brazier
Optional
- External air kit
- Front pellet loading kit
- Extra pellet hopper kit
- Adjustable feet
- App
