Technical data
IP 11 CAST IRON DOOR | IP 11 G FRAMELESS DOOR | |
---|---|---|
Energy efficiency class | A+ | A+ |
Rated output | 4,6 - 11 kW | 4,6 - 11 kW |
Efficiency | 87,3 - 87,7 % | 87,3 - 87,7 % |
Heatable volume | 185 - 315 m³ | 185 - 315 m³ |
Pellet consumption | 1 - 2,6 kg/h | 1 - 2,6 kg/h |
Tank capacity | 22 kg | 22 kg |
Ø Flue outlet | 8 cm | 8 cm |
Product weight: Vedi la scheda del prodotto
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads
IP 11

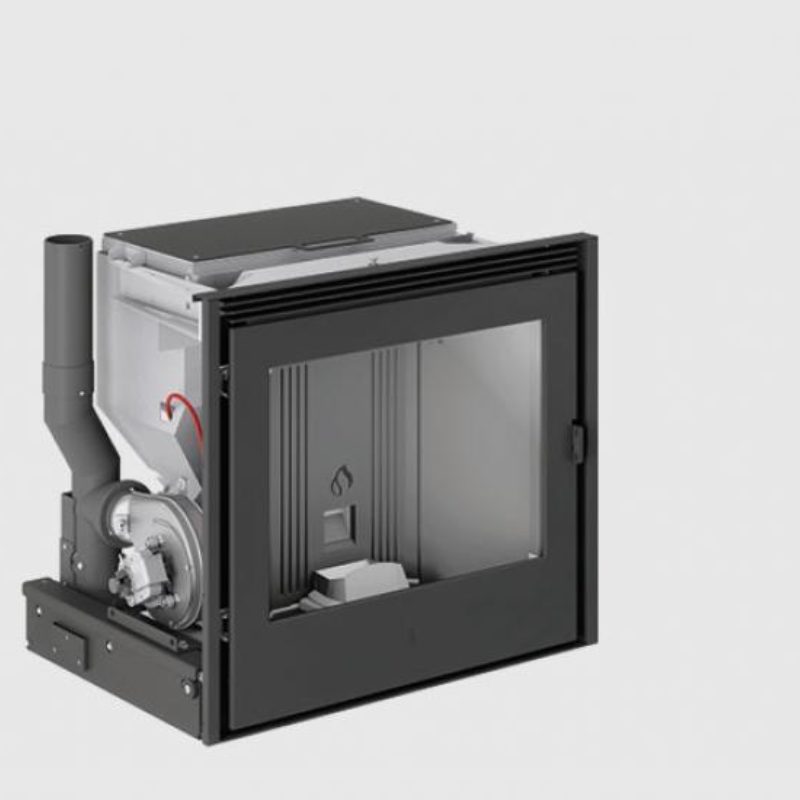

Insert IP 11 for Pellet Fireboxes, E-C A+
An IP pellet-burning insert that allows you to turn your traditional open fireplace into a practical, closed one, ensuring all the pleasure of fire. Programmable automatic switching on/off characterises this pellet-burning insert: ideal also for first-time installations.
The efficiency of pellets
Performance and savings, the optimum solution for bringing warmth to the home.
Draw combustion air from the outside
With an optional kit you can draw combustion air directly from the outside, so as to avoid using up oxygen from inside. This option allows you to improve the comfort inside your home, optimising combustion and reducing consumption for greater savings. An effective solution for any type of home.
To make routine maintenance easier
To make manual cleaning easier, Piazzetta appliances are provided with an automatic brazier cleaning system. During operation, the brazier manages to cyclically eliminate the residues that form during combustion. This solution allows you to achieve higher efficiency and to reduce routine cleaning operations.
Ecodesign 2022
The objective of Ecodesign 2022 is to increase energy efficiency and reduce harmful emissions into the atmosphere. Piazzetta had already embarked on this path some time before, developing new product lines that include important innovations which comply with environmentally-friendly manufacturing requirements.
Main features
Ventilation kit
Digital display
Steel
Cast iron firebox
Steel brazer
Fuel level sensor
ECO
Energy saving
APP WI-FI bluetooth
External air kit
Vacuum
Remote control LCD
Steel structure
Optional
Extra pellet hopper kit
Pellet loading kit
Adjustable feet
External air kit
SMS-APP
Vacuum
Ventilation kit
