Technical data
IL 75/64
Energy efficiency classA
Rated output9,0 kW
Efficiency79.7 %
Heatable volume150 - 260 m³
Wood consumption2,4 kg/h
Ø Flue outlet18 cm

Product weight: 132 kg

Product measures (LxPxH): Vedi la scheda del prodotto

Downloads

IL 75/64

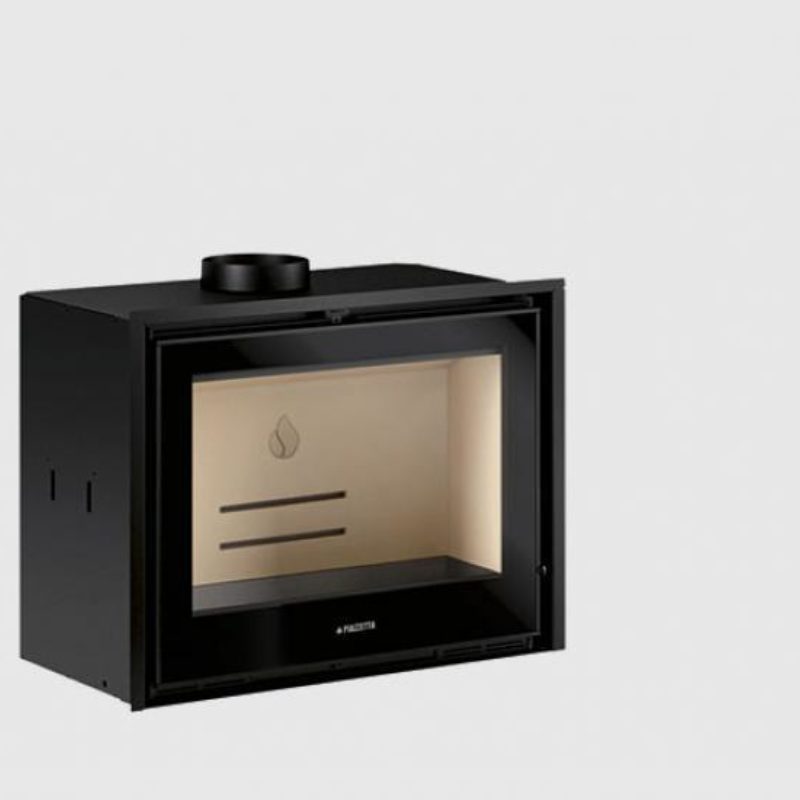

Insert from IL Inserts, E-C A, IL 75/64 with Natural Convection for Wood Fireboxes

IL wood-burning insert, specially designed to be installed in existing traditional fireplaces, improving their performance and safety and making them easier to use. Also ideal for first installations.

⁠⁠⁠⁠⁠⁠⁠The pleasure of wood

Tradition and innovation to enjoy classic wood fire.

Structural sturdiness

The sturdiness of Piazzetta appliances is the result of enormous experience and ongoing research. The structural sturdiness, resulting from careful design and top quality, high-thickness steel, ensures long service life of each solution. The products are developed as well as tested in Piazzetta laboratories to check production processes and compliance with international standards.

Aluker®, exclusive ceramic material by Piazzetta.

Piazzetta fireboxes are made with Aluker®, the exclusive ceramic material patented by Piazzetta, which improves combustion and heat diffusion, thereby increasing the operating efficiency of the firebox. The light colour of this material remains like that over time, making the view of the fire even more pleasant and always brilliant and alive.

Practical brazier

Thanks to its particular development, the brazier in Piazzetta fireboxes offers an ample capacity and ease in loading wood. This means easier use, significant combustion quality and an unparalleled view of the fire. Collecting the embers is also highly practical. The ample dimensions also allows the view of the fire to be enhanced to the maximum by offering a wide

Main Features

  • Steel
  • Cast iron brazier and aluker firebox
  • Tertiary air
  • Hinged door
  • Ash box
  • Ventilation kit

Optional

  • Vacuum
