Technical data
IL 65/56 V | |
---|---|
Energy efficiency class | A |
Rated output | 7,0 kW |
Efficiency | 80 % |
Heatable volume | 120 - 200 m³ |
Wood consumption | 1.9 kg/h |
Ø Flue outlet | 15 cm |
Product weight: 120 kg
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads
IL 65/56 V

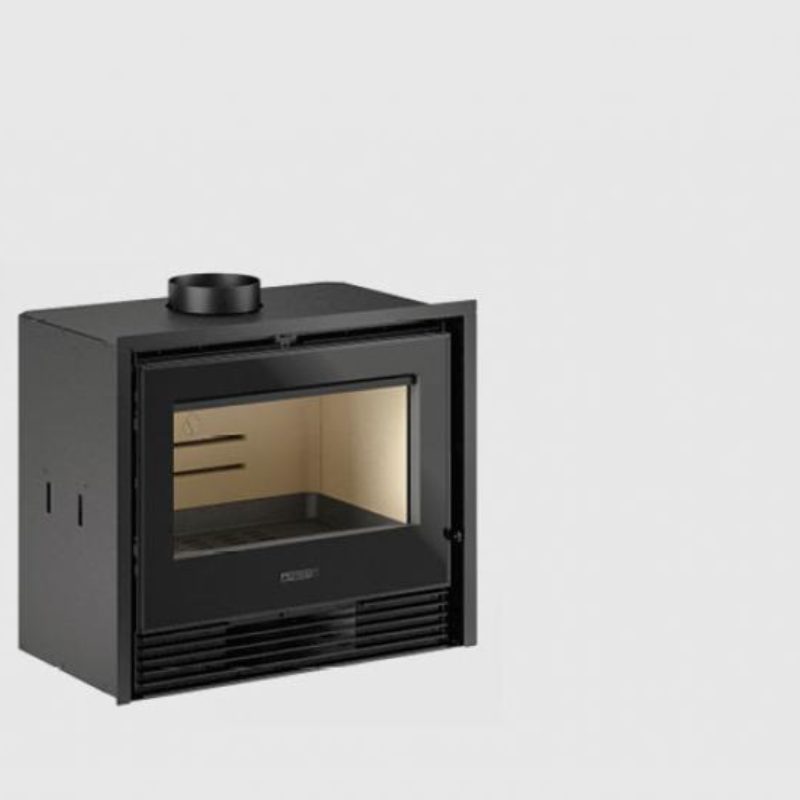

Insert from IL Inserts, E-C A, IL 65/56 V with Natural Convection for Wood Fireboxes
IL wood-burning insert, specially designed to be installed in existing traditional fireplaces, improving their performance and safety and making them easier to use. Also ideal for first installations.
The pleasure of wood
Tradition and innovation to enjoy classic wood fire.
Structural sturdiness
The sturdiness of Piazzetta appliances is the result of enormous experience and ongoing research. The structural sturdiness, resulting from careful design and top quality, high-thickness steel, ensures long service life of each solution. The products are developed as well as tested in Piazzetta laboratories to check production processes and compliance with international standards.
Aluker®, exclusive ceramic material by Piazzetta.
Piazzetta fireboxes are made with Aluker®, the exclusive ceramic material patented by Piazzetta, which improves combustion and heat diffusion, thereby increasing the operating efficiency of the firebox. The light colour of this material remains like that over time, making the view of the fire even more pleasant and always brilliant and alive.
Practical brazier
Thanks to its particular development, the brazier in Piazzetta fireboxes offers an ample capacity and ease in loading wood. This means easier use, significant combustion quality and an unparalleled view of the fire. Collecting the embers is also highly practical. The ample dimensions also allows the view of the fire to be enhanced to the maximum by offering a wide
Main Features
- Steel
- Cast iron brazier and aluker firebox
- Tertiary air
- Hinged door
- Ash box
- Ventilation kit
Optional
- Vacuum
