Technical data
IL 52/57 M | |
---|---|
Energy efficiency class | A |
Rated output | 9 kW |
Efficiency | 80.5 % |
Heatable volume | 150 - 260 m³ |
Wood consumption | 2.7 kg/h |
Ø Flue outlet | 15 cm |
Product weight: 96 kg
Product measures (LxPxH): Vedi la scheda del prodotto
Downloads
IL 52/57 M

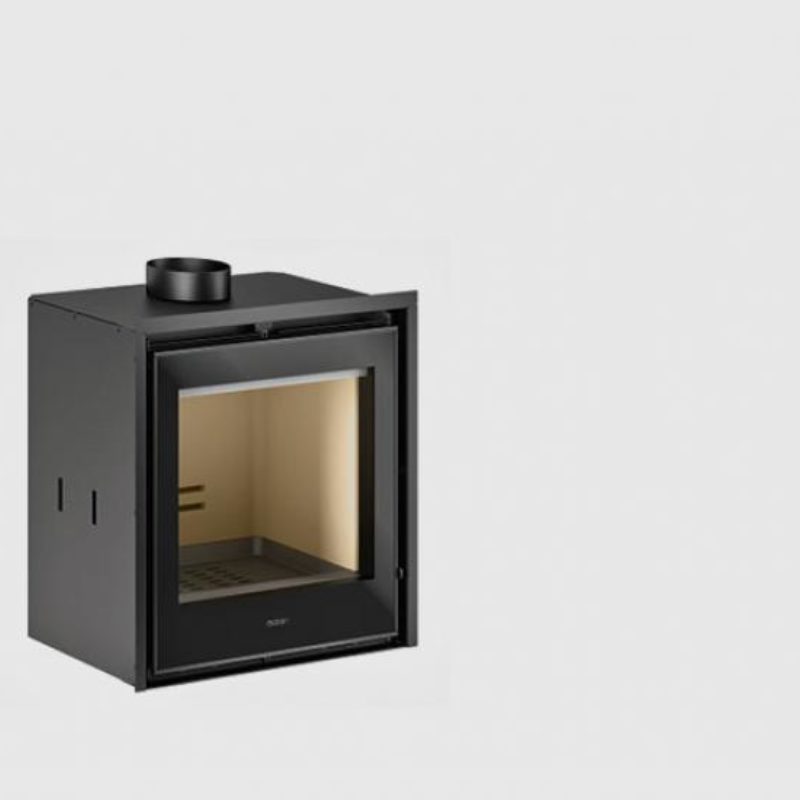

Insert from IL Inserts, E-C A, IL 52/57 M with Natural Convection for Wood Fireboxes
IL wood-burning insert, specially designed to be installed in existing traditional fireplaces, improving their performance and safety and making them easier to use. Also ideal for first installations.
The pleasure of wood
Tradition and innovation to enjoy classic wood fire.
Structural sturdiness
The sturdiness of Piazzetta appliances is the result of enormous experience and ongoing research. The structural sturdiness, resulting from careful design and top quality, high-thickness steel, ensures long service life of each solution. The products are developed as well as tested in Piazzetta laboratories to check production processes and compliance with international standards.
Aluker®, exclusive ceramic material by Piazzetta.
Piazzetta fireboxes are made with Aluker®, the exclusive ceramic material patented by Piazzetta, which improves combustion and heat diffusion, thereby increasing the operating efficiency of the firebox. The light colour of this material remains like that over time, making the view of the fire even more pleasant and always brilliant and alive.
Ducting with the Multifuoco® System
The Multifuoco System® allows you to maintain an even room temperature, thanks to natural convection currents. It avoids the layering of heat near the ceiling and ensures heat at floor level (our feet). Via a simple ducting system, consisting of small-diameter, flexible pipes, you can also heat other rooms in the house, even on different floors.
Main Features
- Steel
- Cast iron brazier and aluker firebox
- Tertiary air
- Hinged door
- Ash box
Optional
- Multifuoco ducting
- Multifuoco Plus ducting
- Vacuum
