Technical details
| E128 con Multifuoco System® Plus di serie | E128 a convezione naturale | E128 con Multifuoco System® di serie | E128 BCS con Multifuoco System® Plus di serie | E128 BCS a convezione naturale | |
|---|---|---|---|---|---|
| Energy efficiency class | A+ | A+ | A+ | A+ | A+ |
| Rated output | 5,5 - 11 kW | 5,5 - 11 kW | 5,5 - 11 kW | 5,5 - 11 kW | 5,5 - 11,1 kW |
| Efficiency | 84,3 - 87,4 % | 84,3 - 86 % | 84,3 - 87,4 % | 85,5 - 87,2 % | 84,8 - 86,6 % |
| Heatable volume | 185 - 315 m³ | 185 - 315 m³ | 185 - 315 m³ | 185 - 315 m³ | 185 - 320 m³ |
| Wood consumption | 1,4 - 2,8 kg/h | 1,4 - 2,9 kg/h | 1,4 - 2,8 kg/h | 1,4 - 2,8 kg/h | 1,4 - 2,9 kg/h |
| Ø Flue outlet | 15 cm | 15 cm | 15 cm | 15 cm | 15 cm |
Downloads
Product sheets
E128 (Multifuoco System Plus)-en.pdf
E128 (Convezione naturale)-en.pdf
E128 (Multifuoco System)-en.pdf
E128 Hermetic BCS (Multifuoco System Plus)-en.pdf
E128 Hermetic BCS (Convezione naturale)-en.pdf
EU Product sheet
Technical drawings
DisegnoTecnico-E128 Hermetic BCS.pdf
DisegnoTecnico-E128 Hermetic BCS.pdf
DisegnoTecnico-E128 Hermetic BCS.pdf
DisegnoTecnico-E128 Hermetic BCS.pdf
Declaration of performance
Energy class label
E.E.2015_1186 E128 MF PLUS 11,0KW A+.pdf
E.E.2015_1186 E128 11,0KW A+.pdf
E128

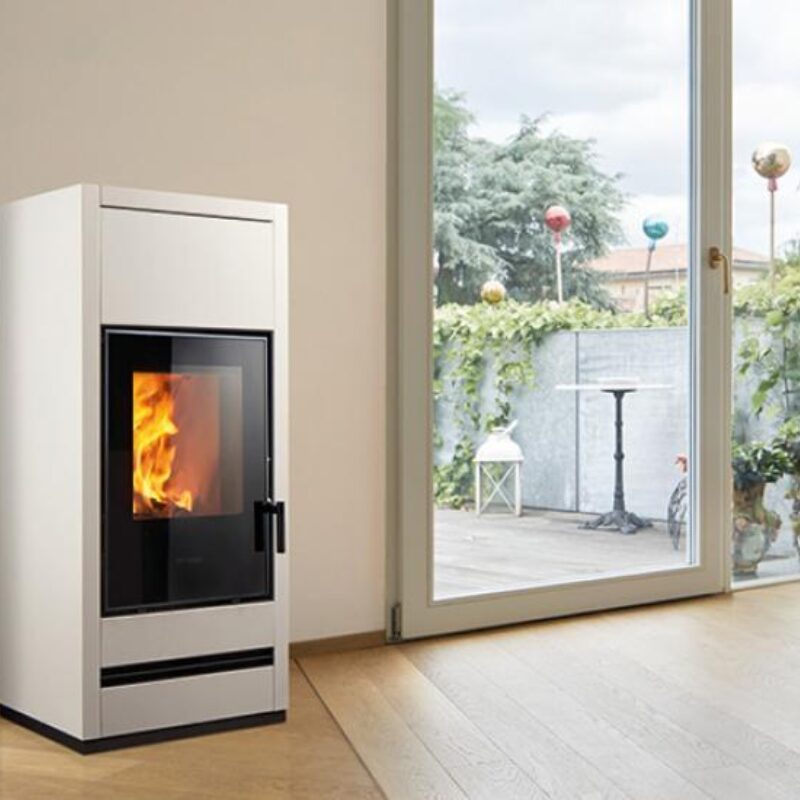

A stove with a linear design cladded in Steel with a Majolica top. It provides heat via natural convection and radiation. Available in Bianco or Nero Opaco. Adjustable, front hot air vent Available with the BCS System and in an airtight version with combustion air drawn from the outside.
Main features
- Corner
- Air wash
- Aluker
- Upper flue outlet
- Primary e Secondary air adjustable
- Natural heating
- Majolica and steel
- Tertiary air
- Multifuoco System 4 levels
- Rear flue outlet
- Ash box
- Wall
- BCS
- Outside air electronic control
- Front ventilation
- Hermetic
Optional
- HSS
- Umidificatore
- Vacuum
