Technical details
| Monoblocco a legna SL30 | Monoblocco SL30 Ermetico Burn Control System | |
|---|---|---|
| Energy efficiency class | A+ | A+ |
| Rated output | 5,5 - 11 kW | 5,5 - 11,1 kW |
| Efficiency | 83,1 - 86 % | 84,8 - 86,6 % |
| Heatable volume | 185 - 315 m³ | 185 - 320 m³ |
| Wood consumption | 1,5 - 2,9 kg/h | 1,4 - 2,9 kg/h |
| Ø Flue outlet | 15 cm | 15 cm |
Downloads
EU Product sheet
S.P.1186+1185 E928 BRU-CAN-ORT 11,0KW A+.pdf
UE-Monoblocco SL30 Ermetico Burn Control System.pdf
Technical drawings
DisegnoTecnico-CANAZEI BCS.pdf
Declaration of performance
DOP-Monoblocco a legna SL30.pdf
DOP-Monoblocco SL30 Ermetico Burn Control System.pdf
Energy class label
E.E.2015_1186 CANAZEI 11,0KW A+.pdf
EnergyLabel-Monoblocco SL30 Ermetico Burn Control System.pdf

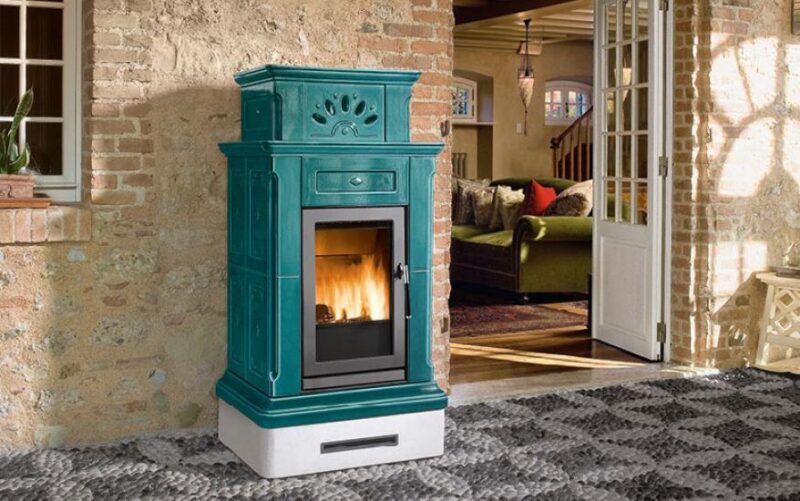

CANAZEI
This model reflects the style of classic Majolica stoves and uses a high-efficiency firebox. The large Majolica surface is available in Bianco, Blu Verdemare, Canapa, Terra Bruna and Verde Mirto or Bianco Antico with hand-painted decoration. Adjustable, front hot air vent Also available with the BCS system.
Main features
- Natural heating
- Tertiary air
- Cast iron brazier and aluker firebox
- Majolica
- Cast iron door
- Ash box
- Air wash
- Rear flue outlet
- Top flue outlet
- Adjustable air flow
Optional
- Multifuoco ducting 10M
- Multifuoco Plus ducting 10M
- External air kit
- Vacuum
