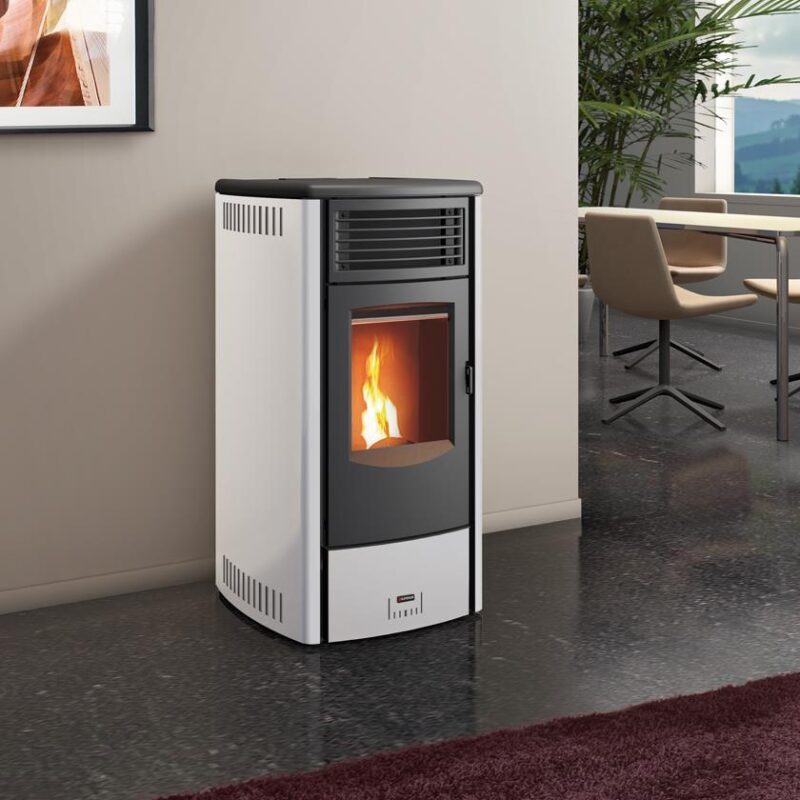

Camilla

  • Forced ventilation pellet stove
  • Cladding: enamelled steel
  • Top: steel

⁠⁠⁠⁠⁠⁠⁠Specifications:

  • Dimensions WxDxH cm: 52x49x96
  • Sealed stove firebox: steel
  • Baffle plate/Firebox and Brazier: Skamolex / steel / cast iron
  • Combustion air inlet ø cm: 6
  • Exhaust fumes series ø 8 cm: rear
  • Exhaust fumes with optional kit: side dx - side sx - top - top coaxial
  • Door: cast iron
  • Ash drawer: removable
  • Ceramic glass: resistant up to 750°
  • Door handle: enamelled steel openable with cold hand
  • Hopper capacity Kg: 15
  • Remote control: optional
  • Humidifier: optional
  • Timer-thermostat with programming: 6 daily time slots
  • Stove control unit: with digital control
  • App WiFi-Bluetooth: yes
  • Eco function: yes
  • Energy Saving: yes
  • Night function: yes
  • Room heating capacity (min-max) m3: 100 - 175
  • Nominal thermal output (min-max) kW: 2,8 - 6,0
  • Output control (positions): 5
  • Efficiency (max) %: 91,3
  • Consumption at rated heat output (min-max) Kg/h: 0,6 - 1,3
  • Total weight Kg: 90

Documents:

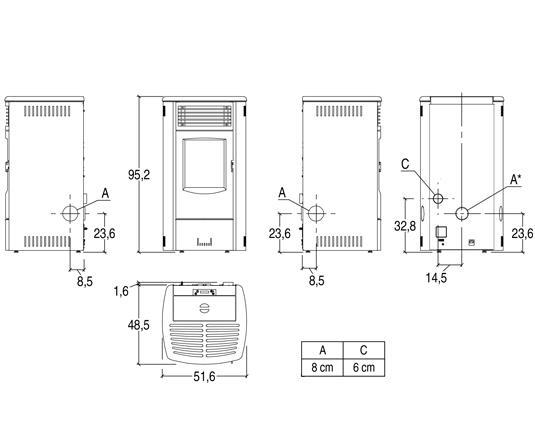

Blueprints:



BLUEPRINTS CAMILA
