Built-in unit XXL, built-in fire
Design your own fireplace
You have just bought an old house with a wood fireplace but which is no longer usable and you would like to delight the flames to make your home warmer? Discover our bioethanol fireplace with the built-in unit XXL.
We know that the cost of renovating the old fireplace will be heavy, so wouldn't you prefer to invest in a more ecological fireplace that will cost you less? Simply place the built-in unit in the old fireplace, place the bioethanol burner inside and create real, stable and constant flames.

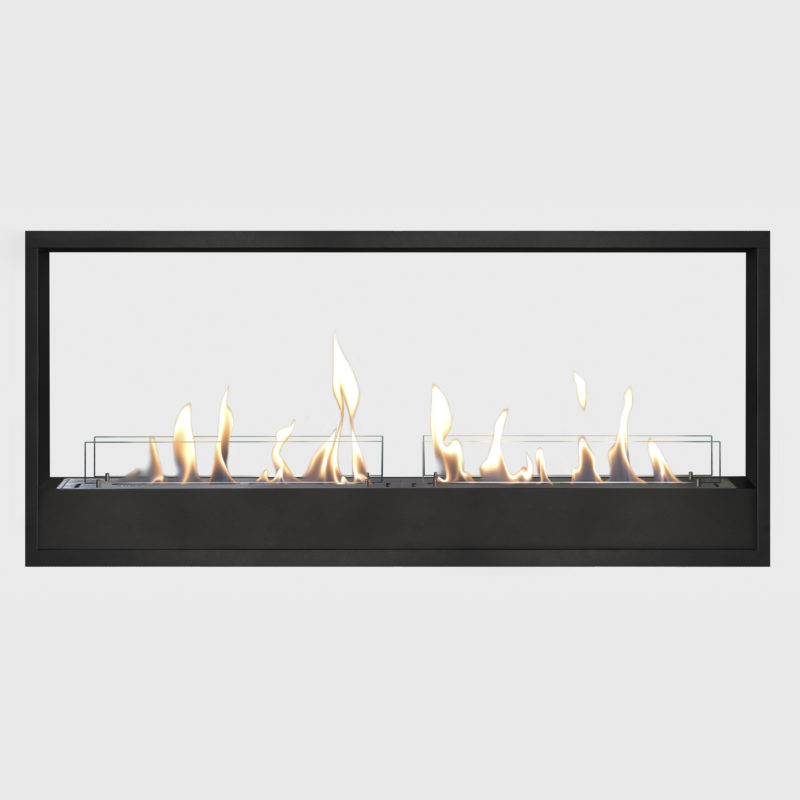

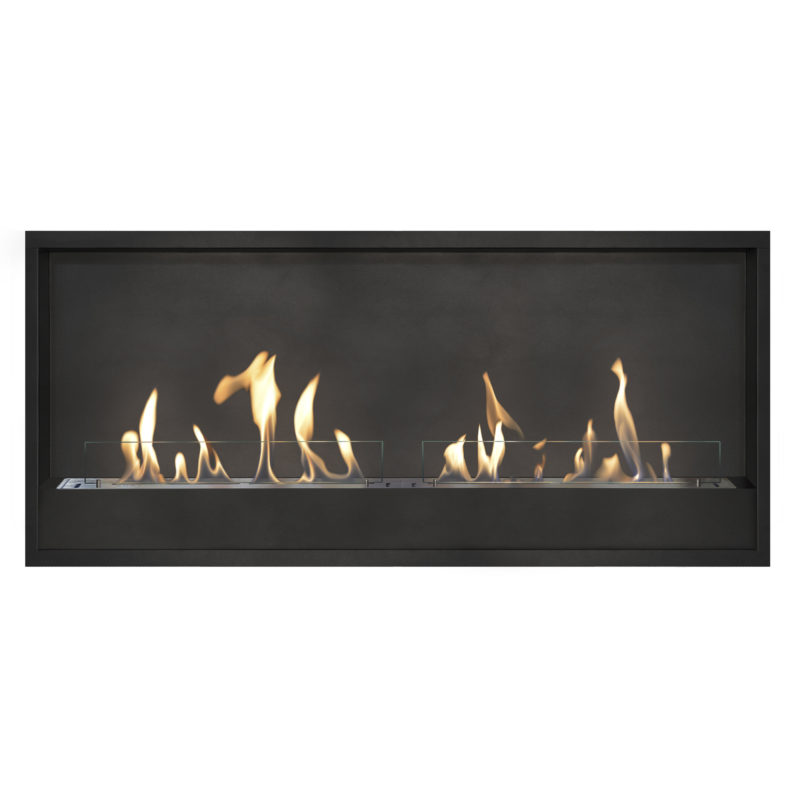

The Xaralyn Built-in unit XXL is designed for use in combination the bio ethanol burner XXL (11814LB). The insert protects your design against the heat that is produced by the burner. The back plate is removable so that this built-in unit also can be installed as a see-through fireplace.
The built-in unit will be deliverd including corresponding bio ethanol burner.

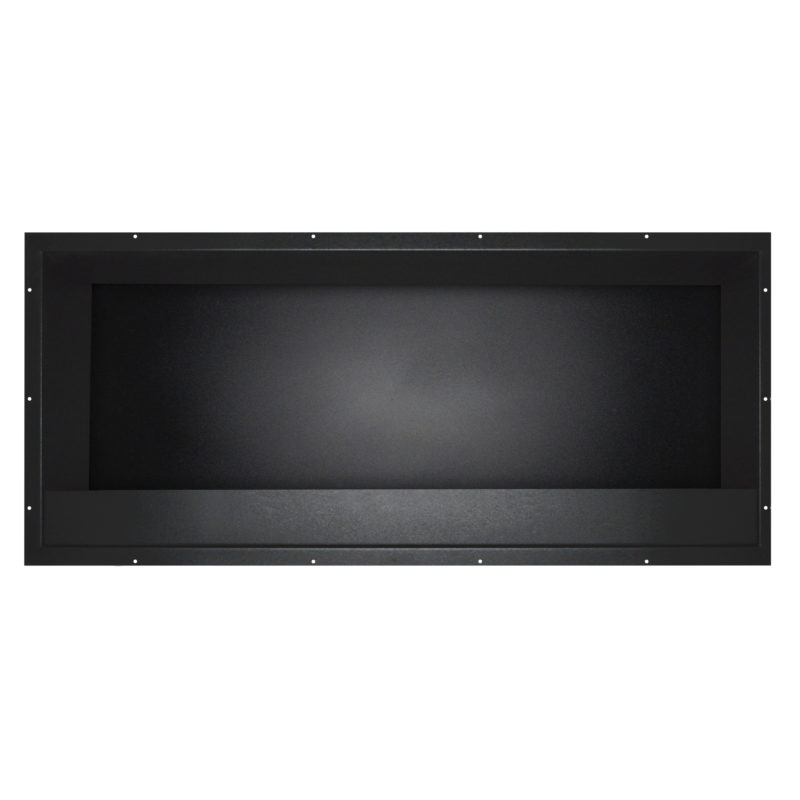

Built-in unit XXL:
- Measurements: 536 x 1330 x 217 mm (HxBxD)
- Material: Metal
- Colour: Black
- Packaging: 1450 x 280 x 590 mm
- Weight: 20,6 kg
- EAN: 8717853922435
- Warranty: 2 Years

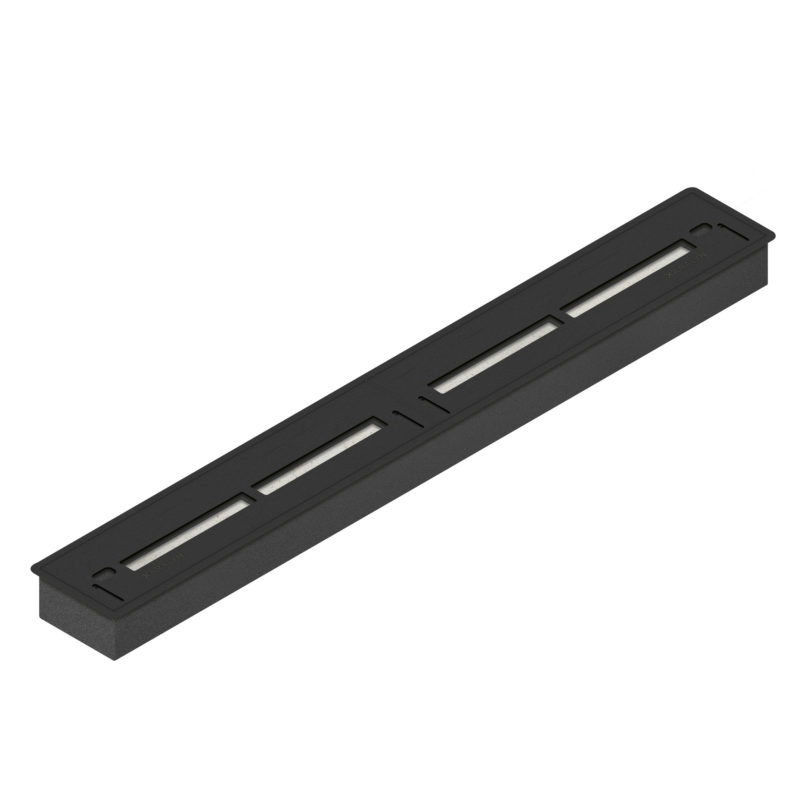

Bio ethanol burner XXL (11814B):
- Burner contents: ± 3.5 liter
- Burning time: ± 3,5 to 4 hours
- Consumption per hour: ± 0,65 liter
- Heat output: approx. 5 KW
- Material: stainless steel
- According to standards: DIN 4734-1 and EN 16647:2015

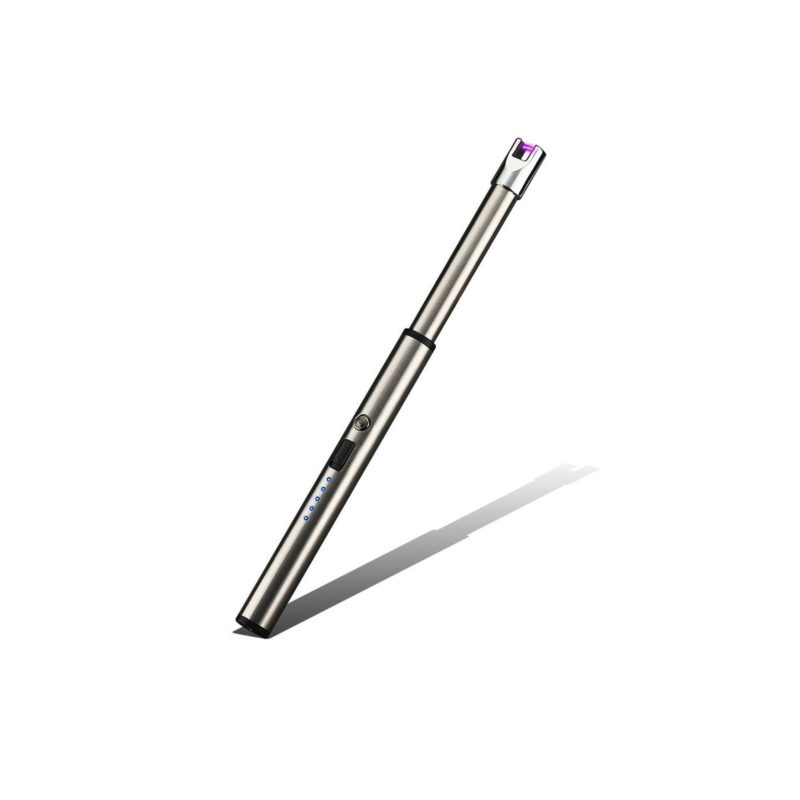

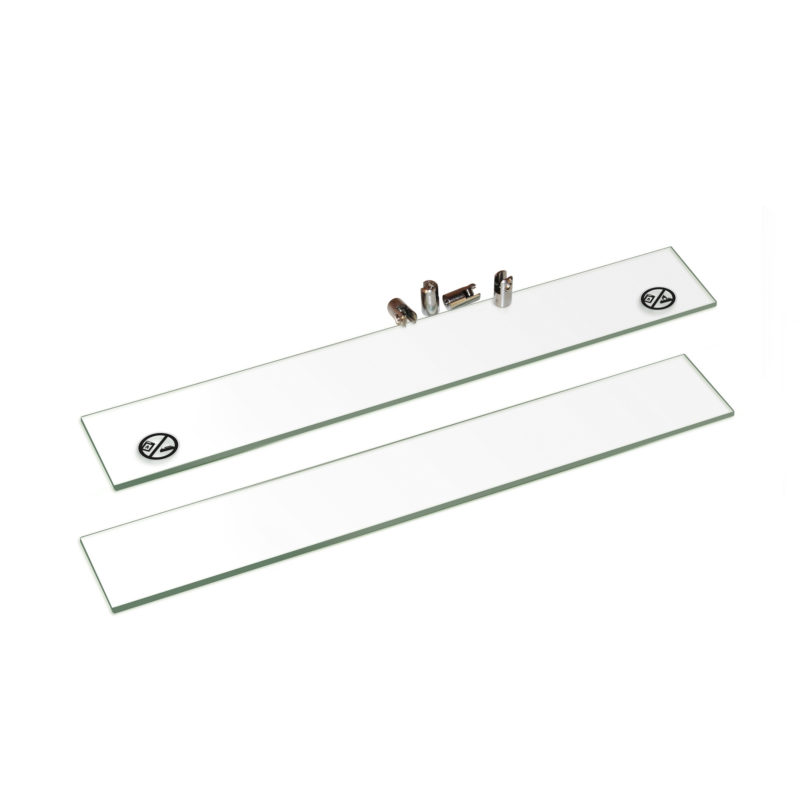

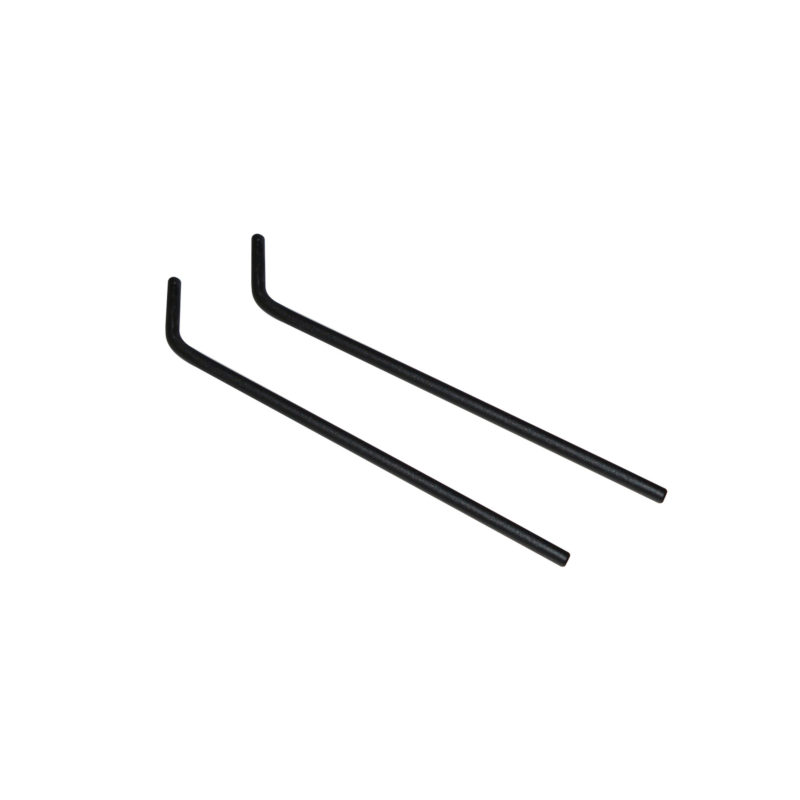

- Burner is delivered including all accessories such as glass plates, operating sticks, funnel and lighter.
- Packaging: 1360 x 210 x 145 mm
- Weight: 20 kg
- EAN: 8717853925870
- Warranty: Lifetime
- We advise you to use for your project a non-combustible material such as Promatect or similar.
Recommendations:
- Read the instructions carefully.
- With a room temperature of 18 degrees celsius, the temperature directly above the buit-in rises to 50 degrees. At 80cm above the burner the temperature rises to 35 degrees.
Maintenance: do not use any cleaning agents or abrasives, they can damage the surface
- To clean your bio ethanol fireplace, use a soft damp cloth and dry with a soft cloth.
