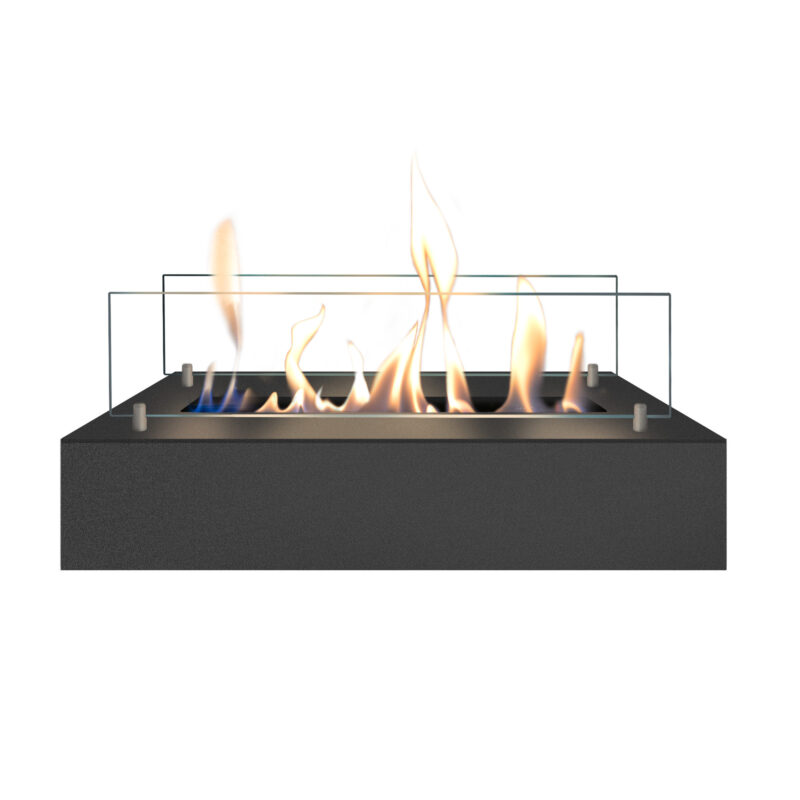

Bio ethanol burner M (4120B)

Clean and safe

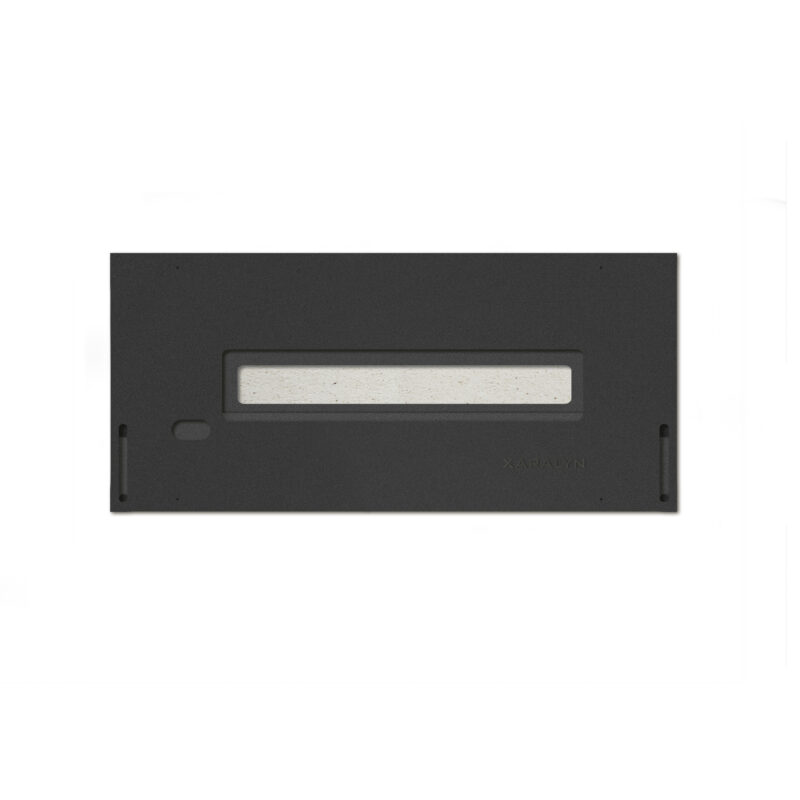

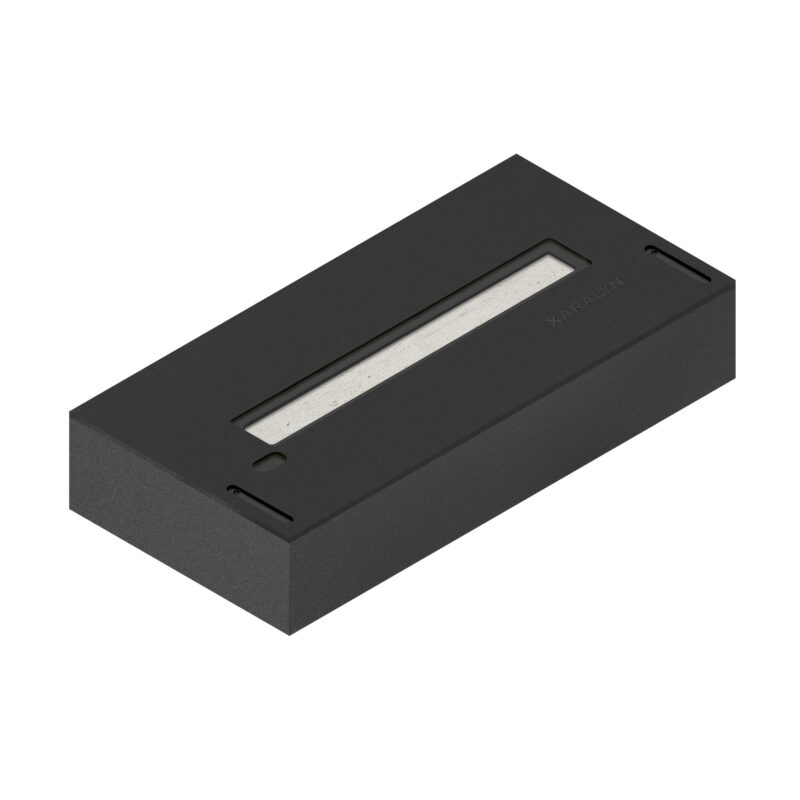

The M (4120B) bioethanol burner is among the smallest of Xaralyn's famous burners (slightly wider than the S). It is made of stainless steel with a blackpowder coating and is delivered including all necessary appliances like glass screens, lighter and funnel. Our bio ethanol burners have been thoroughly tested and came out as the safest available.

The liquid fuel is completely absorbed by the patented ceramic core. The gas that is gradually released when the burner is opened, causes a stable, economic combustion, which is up to 50% more economic in use in comparison to other burners; the safest open fire.

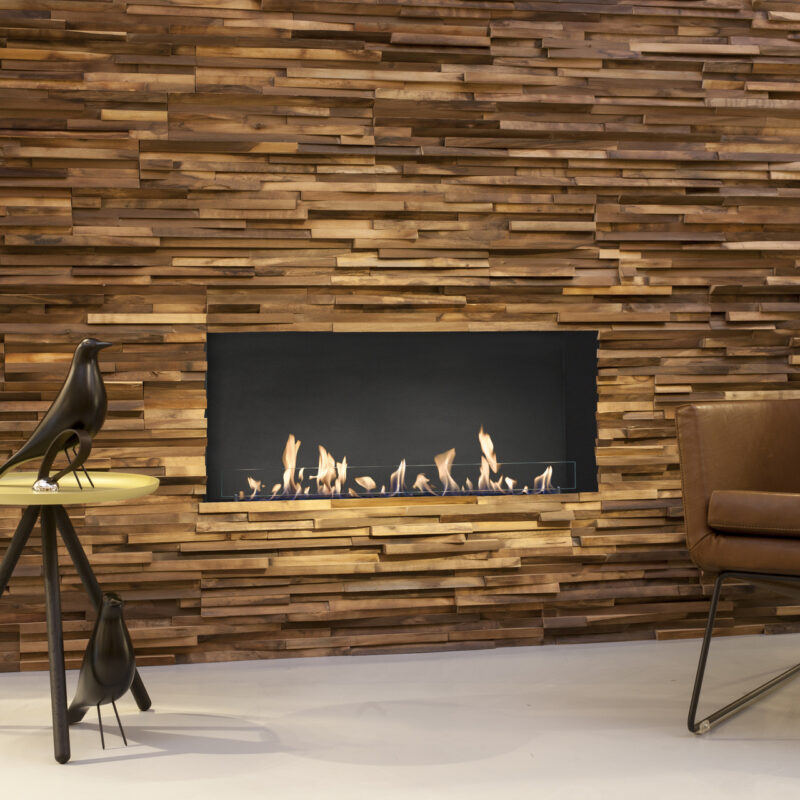

Can be integrated into individual fire designs, residential and commercial. The design, quality and safety makes this the most popular bio ethanol burner among designers and developpers.

This bioethanol burner of outstanding quality is developed for years of enjoyment.

All Xaralyn bioethanol burners with ceramic core comes with a lifetime limited warranty!

Bio ethanol burner M (4120B):

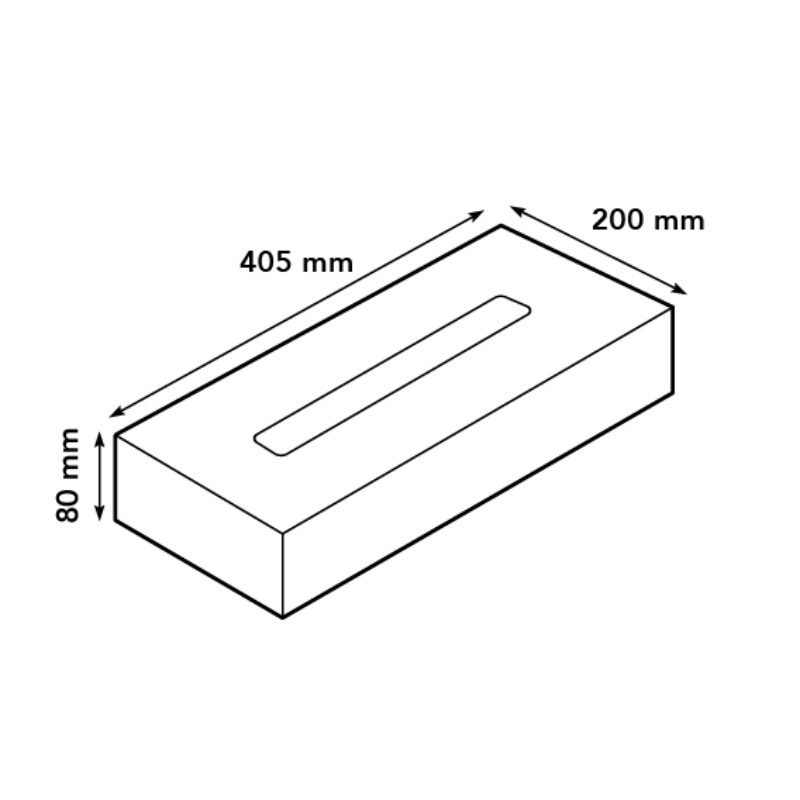

Measurements: 80 x 405 x 200 mm (HxWxD)

Burner contents: ± 1,5 liter

Burning time: ± 3,5 hours

Consumption per hour: ± 0,3 liter

Heat output: approx. 2,5 KW

Material: stainless steel

Weight: 9,3 kg

According to standards DIN 4734-1 and EN 16647:2015

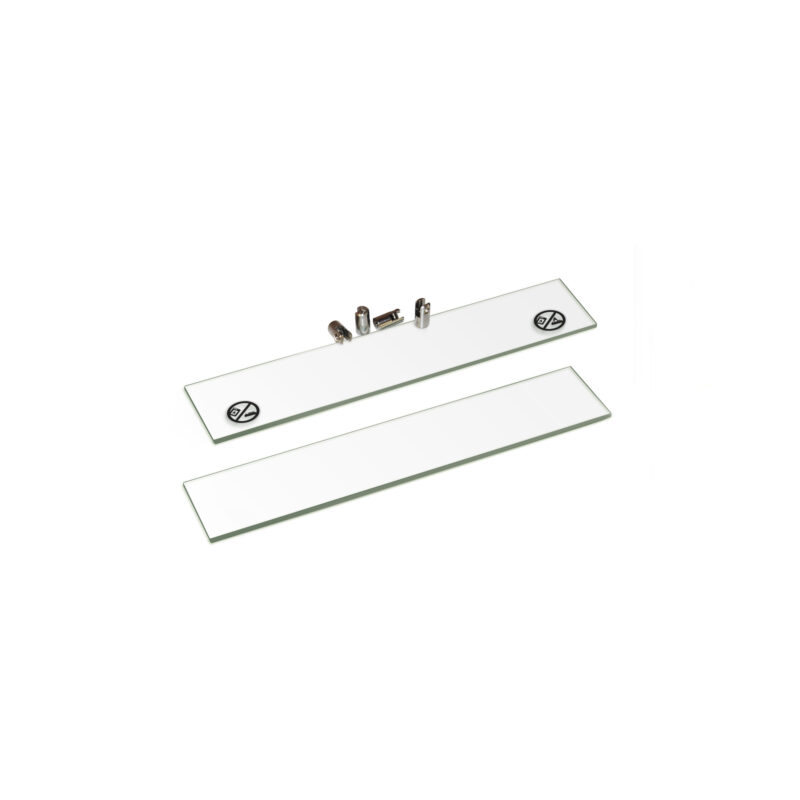

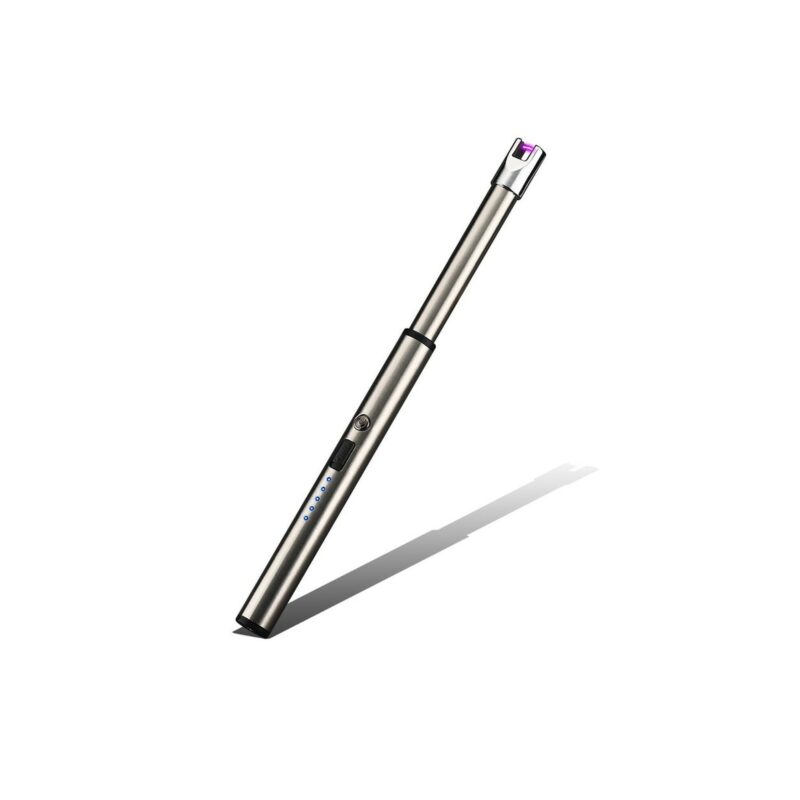

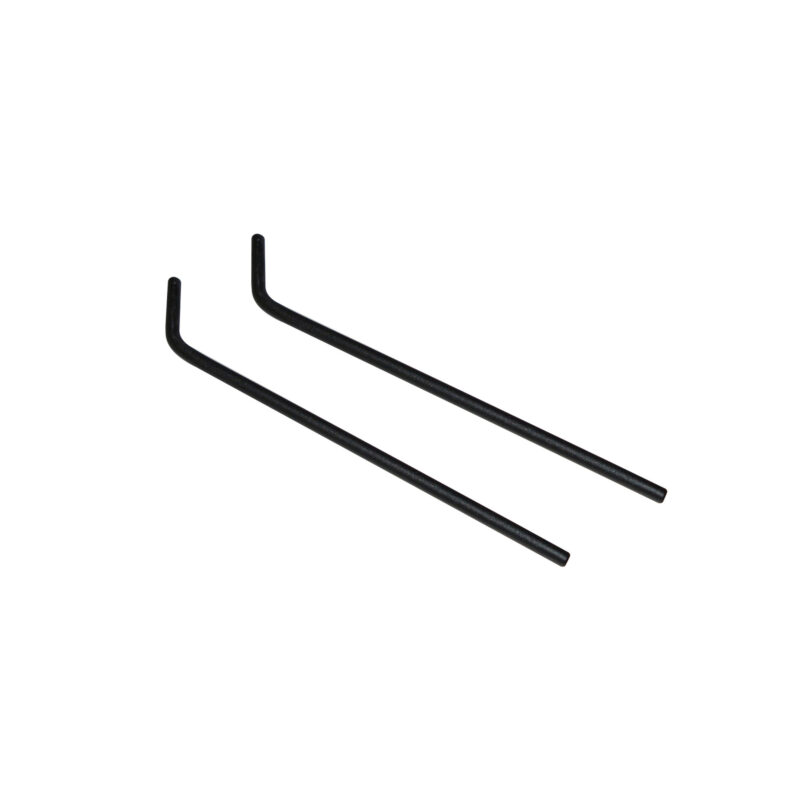

Burner is delivered including all accessories such as glass plates, operating sticks, funnel and lighter.

Packaging: 560 x 260 x 145 mm

gewicht Weight: 9,9 kg

EAN: 8717853920783

Warranty: Lifetime

Here you can easily order spare parts for your bioethanol fireplace or bioethanol burner.

We advise you to use for your project a non-combustible material such as Promatect or similar.

Maintenance:

Clean with a damp cloth and dry with a soft cloth.

Documents:

Technical blueprint

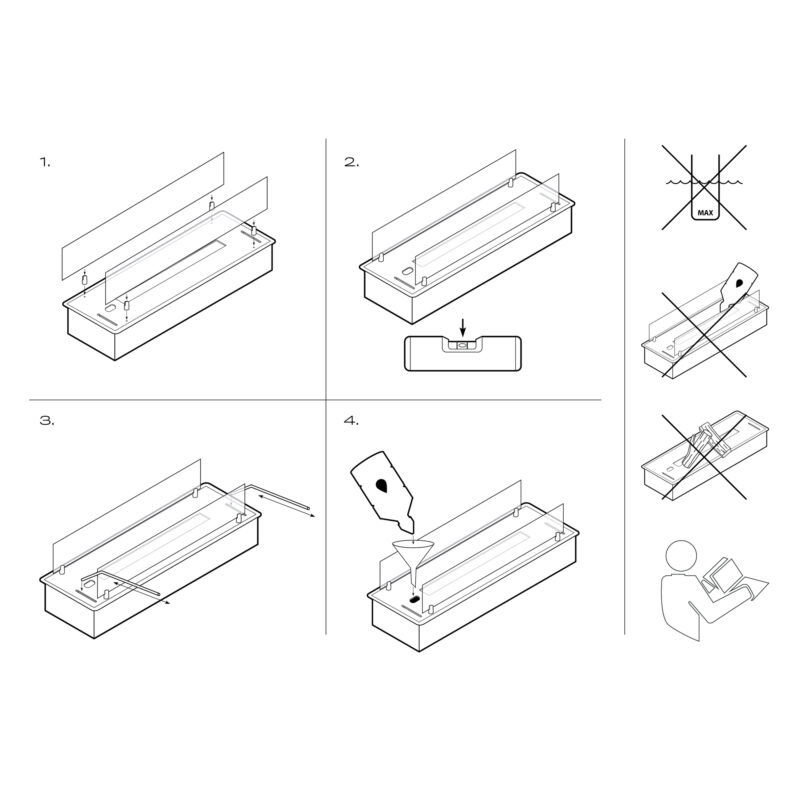

Assembly instructions

User manual
