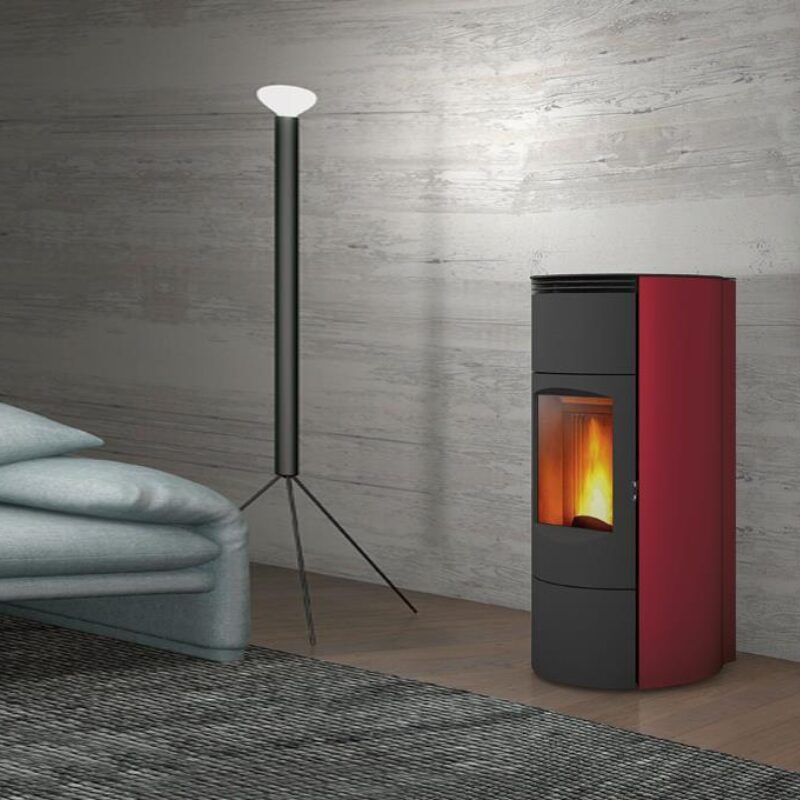

Tanya
- Thermo Forced ventilation pellet stove
- Cladding:enamelled steel
- Top: steel
Specifications:
- Dimensions WxDxH cm: 62 x 58 x 122
- Stove interior: steel
- Baffle plate/Firebox and Brazier: steel/steel-Aluker/cast iron
- Flue size ø cm: 8
- Standard flue: read sx
- Exhaust fumes with optional kit: side left
- Boiler: steel
- Circolation pump and safety devices: standard
- Expansion tank: standard
- Ash drawer: removable
- Door: cast iron
- Ceramic glass: resistant up to 750°C
- Door handle: enamelled steel, opening with cold handle
- Hopper capacity Kg: 30
- Stove control unit: yes
- Timer-thermostat with programming: 6 daily time bands
- Thermal output to the water (min-max) kW: 5,0 - 12,5
- Nominal thermal output (min-max) kW: 6,6-15,6
- Output control (positions): automatic 16 levels based on the set temperature
- Efficiency (max) %: 92,1
- Consumption at rated heat output (min-max) Kg/h: 1,4-3,5
- Maximum electric power (on ignition) Watt: 320
- Electric power in operation Watt: 94
- Total weight Kg: 193
Documents:

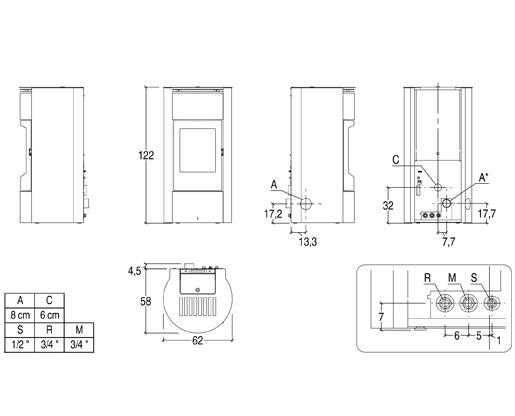

Blueprints:
